BEST ACCESS 9K30Y15D-S3-626 Best Access 9K Series Exit Only Passage Door Lever Set 15 Inches Lever D Trim S3 Strike

Product Description

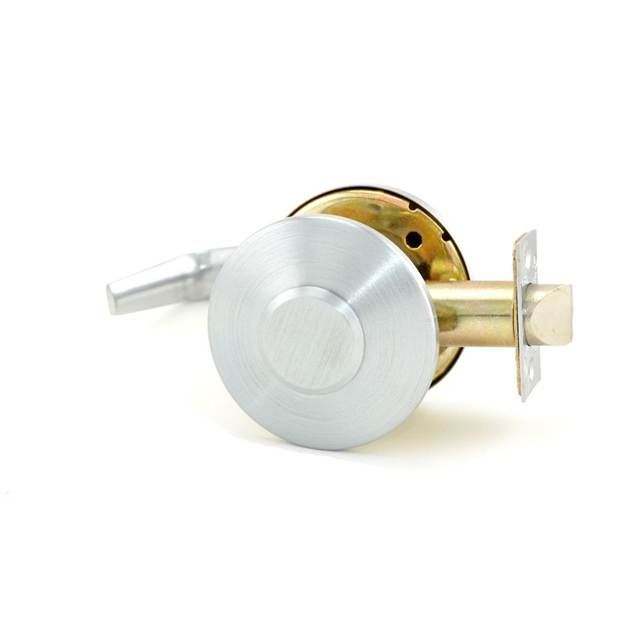

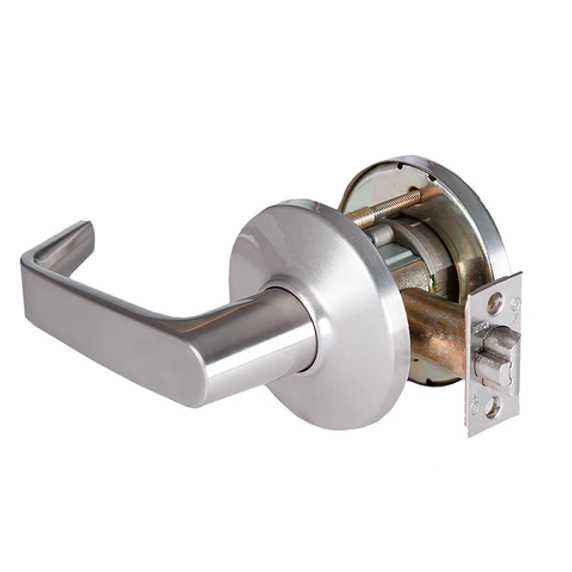

The Best Access 9K30Y15D-S3-626 is a 9K Series Exit Only Passage Door Lever Set featuring a fifteen-inch lever with D trim and S3 strike. This lever set is designed for use where outside access is unnecessary. It operates with the inside lever, while the outside lever remains unlocked at all times. This unit is suitable for doors with thicknesses ranging from one and three-quarters inches to two and one-quarter inches.

• Exceeds BHMA Grade 1 certification standards.
• Durable construction using brass, bronze, and zinc.
• Reversible handing for flexible installation.

Product Highlights

Ideal for passage doors requiring easy exit access without security on the exterior side, making it suitable for emergency exits.

Product Information

Standard Information

• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches

Technical Specifications

• Cross Bore: 2-1/8 inches
• Edge Bore: 1 inch
• Handing: Reversible Left or Right
• Material: Brass, Bronze, Zinc
• Cylinder Type: Non-Keyed
• Function: Y-Exit
• Fire Rated: 3 Hours
• Finish Description: Satin Chrome
• BAA Qualified: Yes
• Country Of Origin: USA
• UL Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
• Series: 9K Series Grade 1 Cylindrical Lever Locks
• Finish: 626/US26D
• Grade: Grade 1
• Lever Style: 15D - 15 Lever with D Rose
• Strike: S3 ANSI Strike
• ANSI Grade: A156.2, Series 4000, Grade 1
