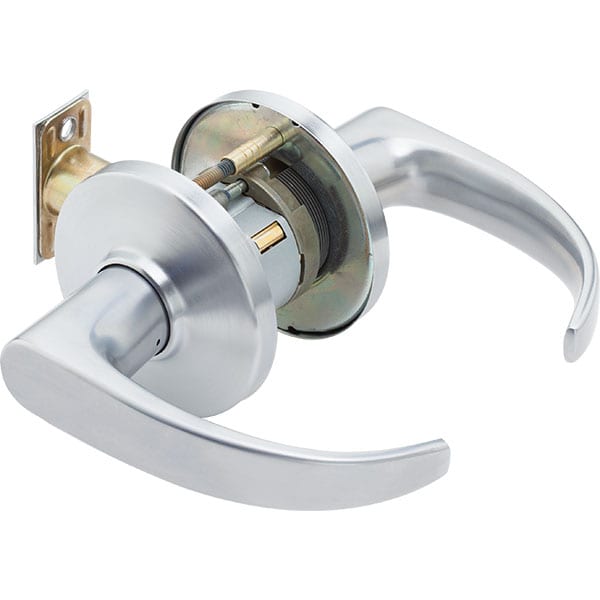

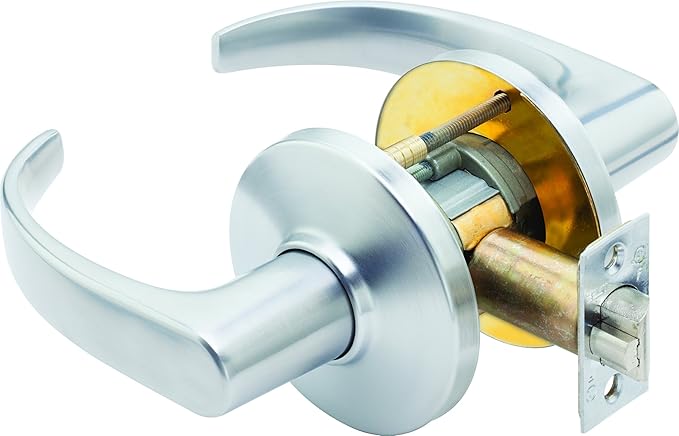

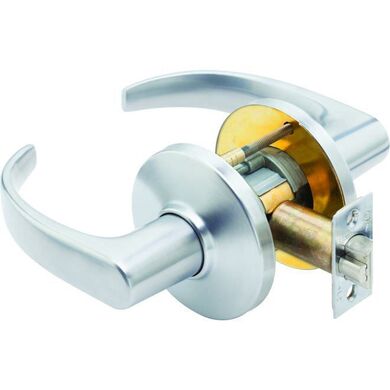

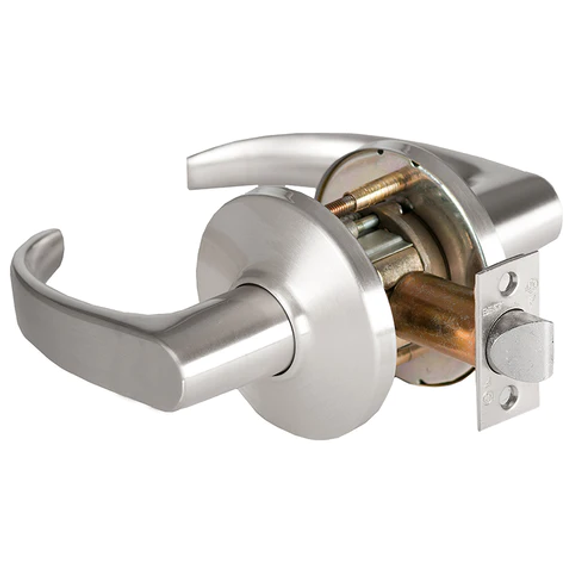

Best Access 9K30N14D-S3-626 14 Lever D Rose Passage Lever Lock

Product Description

The Best Access 9K30N14D-S3-626 is a passage lever lock designed for durability and security. This model features a fourteen lever and a D rose style for smooth operation. It is built to resist torque attacks with its rose locking pin and rose assembly design.

• Rose locking pin and assembly prevent twisting
• Strong through-bolt studs enhance torque resistance
• Robust retractor springs minimize lever sag

Product Highlights

This lever lock is suitable for heavy-duty use. The design allows for easy installation and a reliable locking mechanism.

Product Information

Standard Information

• Lock Type: Cylindrical
• Material: Alloy Steel, Brass, Bronze

Technical Specifications

• Item dimensions: 8.2 x 6.6 x 4.2 inches
• Backset: 2-3/4 inches
• Strike: S3 ANSI Strike
• Crossbore Size: 2-1/8 inch Bore
• Function: N-Passage
• Handing: Reversible
• Grade: Grade 1
• Country Of Origin: USA
• Fire Rated: 3 Hours
• Warranty: 10 Year Warranty
• Lever Design: 14 Lever (Curved, Return)
• Rose: D – 3 1/2 inch Convex
• Door Thickness: 1-3/4 inch to 2-1/4 inch
• ADA Compliance: Meets ADA requirements
