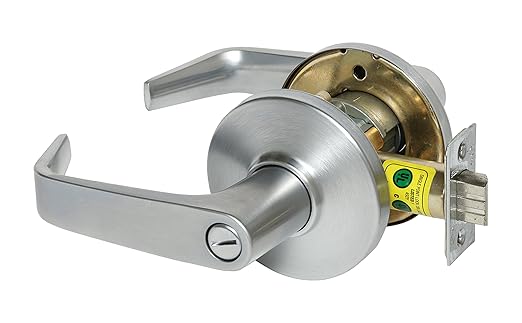

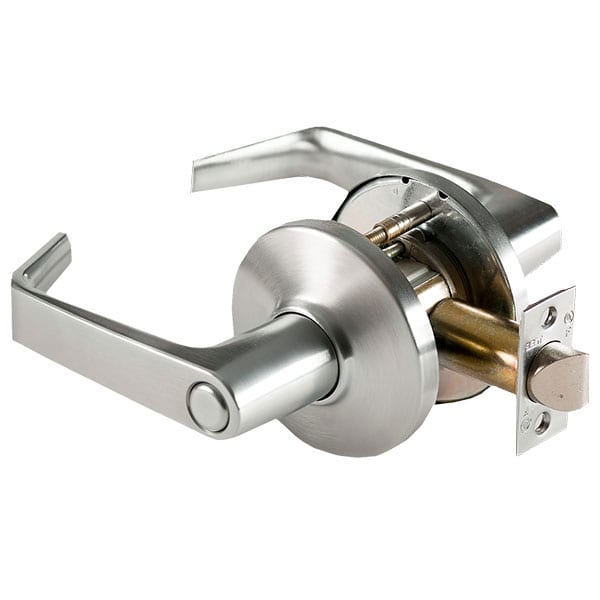

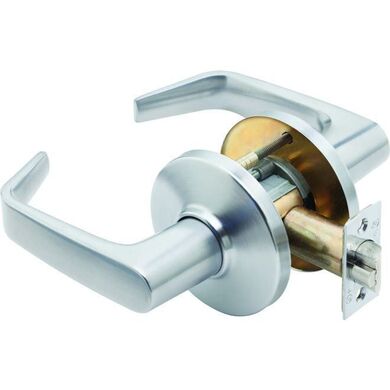

BEST ACCESS 9K30L15D-S3-626 9K Series Privacy Grade 1 Cylindrical Lock 15 Lever

Product Description

The BEST ACCESS 9K30L15D-S3-626 9K Series privacy grade 1 cylindrical lock is designed for secure and reliable use in various settings. This lock features a contour angle return lever design for ease of use. The body is constructed with durable zinc alloy, while key components are made from brass or corrosion-treated steel. Its design allows for low maintenance and straightforward installation.

• UL Listed for safety.
• Heavy-duty chassis comes pre-assembled for quick installation.
• Hardened steel through-bolt studs enhance lever torque resistance.

Product Highlights

The cylindrical lock offers privacy function with robust construction, making it ideal for offices and residential buildings.

Product Information

Standard Information

• Lock Type: Cylindrical
• Material: Brass, Bronze, Zinc

Technical Specifications

• Lock Function: Privacy
• Lever Design: 15 Lever (Contour Angle, Return)
• Rose: D – 3 1/2 inches Convex
• ANSI/BHMA Standard: Listed by BHMA for A156.2, Series 4000, Grade 1
• Fire Rating: Listed by Underwriters Laboratories for use on 3 Hr, A label for single or double swinging doors
• ADA Compliance: Meets ADA requirements – A117.1 Accessibility Code
• Backset: 2-3/4 inches
• Latch: 1/2 inch throw – 1-1/8 inches x 2-2/4 inches face
• Strike: S3: Conforms to ANSI A115.2 for 1 3/4 inches doors (4 7/8 inches x 1 1/4 inches with curved lip)
• Handing: Non-Handed
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Series: 9K Series Grade 1 Cylindrical Lever Locks
• Finish: 626/US26D
• Finish Description: Satin Chrome
• Grade: Grade 1
• Cylinder Type: Non-Keyed
• Function: L-Privacy
• UL Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed
• BAA Qualified: Yes
• Lever Style: 15D - 15 Lever w/ D Rose
• Crossbore Size: 2-1/8 inches Bore and Two 5/8 inches Through Bolt Holes
• Design: 15D
