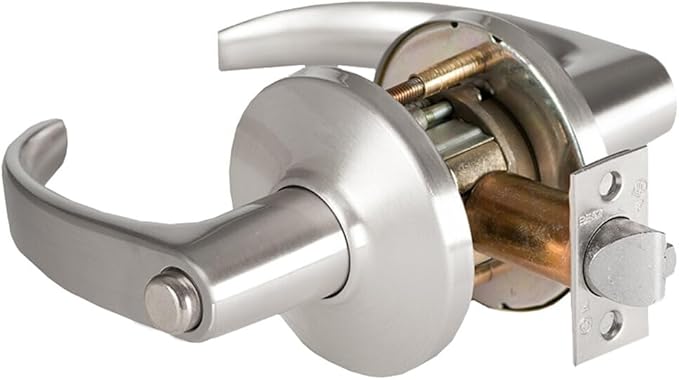

Best Access 9K30L14D-S3-626 9K Series Privacy Door Lever Set

Product Description

The Best Access 9K30L14D-S3-626 9K Series Privacy Door Lever Set is suitable for privacy applications. It can be operated by turning either the inside or outside lever when the push-button on the inside is disengaged. This door lever exceeds BHMA Grade 1 certification standards and complies with the Americans with Disabilities Act (ADA). Installation is compatible with doors that have a thickness ranging from one and three-fourth inches to two and one-fourth inches.

• Exceeds BHMA Grade 1 certification standards
• Fits doors with a thickness of one and three-fourth inches to two and one-fourth inches
• Reversible handing allows installation on right or left doors

Product Highlights

This lever set provides reliable privacy locking functionality and is easy to install. It is designed for durability and convenience.

Product Information

Standard Information

• Brand: Best Access
• Function: L-Privacy

Technical Specifications

• Material: Brass, Bronze, Zinc
• Special Feature: Easy to Install, Keyless
• Included Components: Latch, Lock
• Hand Orientation: Reversible Left or Right
• Backset: 2-3/4 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Cross Bore: 2-1/8 inches
• Edge Bore: 1 inches
• Handle Length: 5-3/8 inches
• Handle Projection: 2-3/4 inches
• Trim Width: 3-1/2 inches
• Trim Height: 3-1/2 inches
• Fire Rated: 3 Hours
• Country Of Origin: USA
• Limited Warranty: 10 Year Warranty
• Finish: Satin Chrome
• Crossbore Size: 2-1/8 inches Bore and Two 5/8 inches Through Bolt Holes
