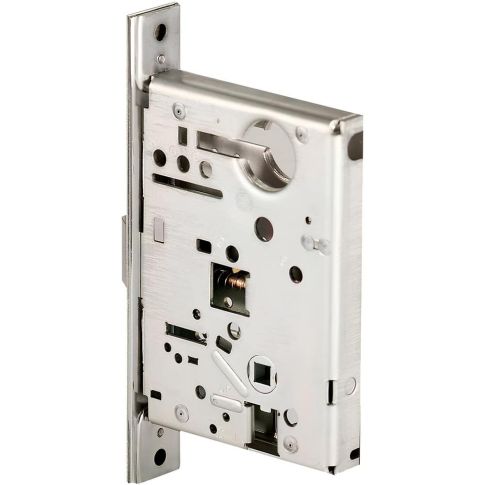

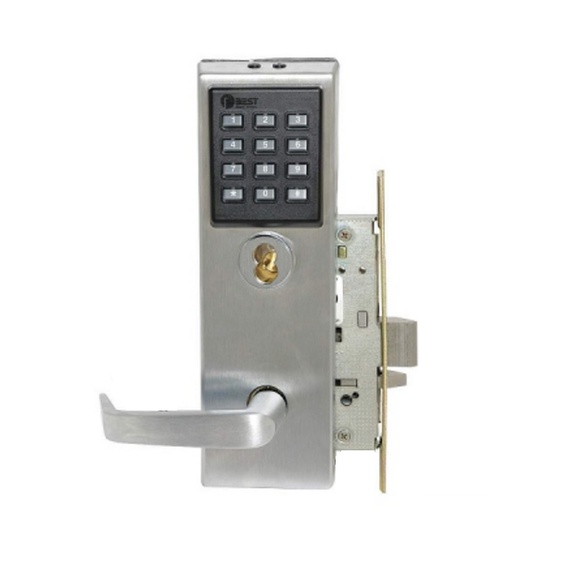

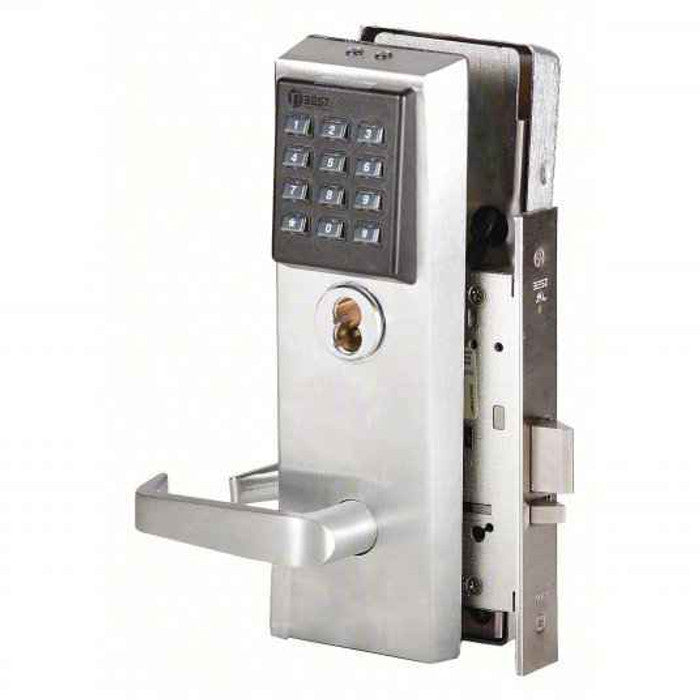

Best Access 45HZ7-DV-15KP-626 Keypad EZ Mort Lock

Product Description

The Best Access 45HZ7-DV-15KP-626 is a keypad mortise lock designed for durability and reliability in various applications. This lock features a fifteen-lever design that provides secure access control for residential doors, office entrances, and apartment complexes. The key override feature ensures mechanical access when needed. It is straightforward to use, making it an effective choice for locking systems.

• Keypad Mortise Lock
• Fifteen Lever Design
• Key Override Capability

Product Highlights

The lock is designed to ensure ease of installation and operation, with a robust construction that withstands everyday use.

Product Information

Standard Information

• Brand: Best Access Systems
• Special Feature: Keyless

Technical Specifications

• Lock Type: Keypad
• Material: Alloy Steel
• Recommended Uses: Residential Doors, Office Doors, Apartment Entrances
• Series: 45HZ Keypad EZ Mortise Locks
• Cylinder: Best 7-Pin SFIC Prep - Less Core
• Backset: 2-3/4 inches
• Case: 0.095 inches cold rolled steel, 5-7/8 inches H x 7/8 inches D x 4-1/16 inches W, zinc dichromate plated
• Faceplate: Brass or bronze material, 8 inches H x 1-1/4 inches W x 1/16 inches T
• Strike: Brass, bronze, or stainless steel base material, 4-7/8 inches H x 1-1/4 inches W x 3/32 inches T
• Door Thickness: Designed for doors 1-3/4 inches thick, thick door configuration available
• Latchbolt: Solid stainless steel, 3/4 inch throw
• Deadbolt: Stainless steel, 1 inch throw
• Lever Handle: Brass, bronze, or stainless steel
• Escutcheon: 10-1/2 inches H x 3-5/16 inches W x 1 inch D
• Primary Power: 4 AA batteries
• Memory Backup: Maintains programming indefinitely
• Relative Humidity: 10% to 90% non-condensing
• Shock: 2000 Gs RMS
• Compliance: FCC, Canadian, and European EMC requirements
• Button Operating Life: 3-5 million cycles
• Sealing: Weatherproof lens and gasket for outdoor use
• Finish: Satin Chrome
• Country Of Origin: USA
