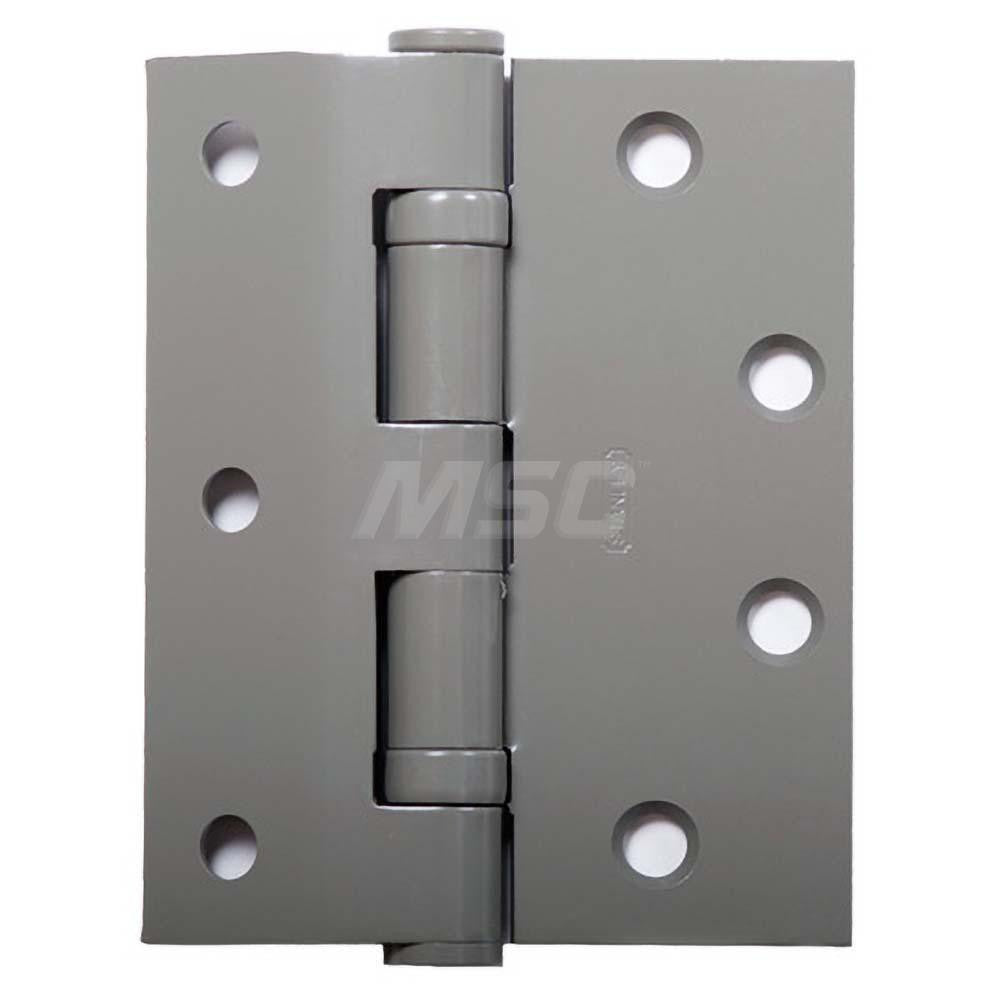

Best 711061746 Full Mortise Commercial Hinge Steel

Product Description

The BEST 711061746 is a full mortise commercial hinge manufactured from steel with a satin chrome finish. Designed for heavy-duty door applications, this hinge features a stainless steel pin and five-knuckle construction that supports a full 360-degree range of motion. The door leaf measures 5 inches in height and 2 inches in width, while the frame leaf measures 4.5 inches in height and 2 inches in width. It meets ANSI A8111 and BHMA certification standards, making it appropriate for commercial specifications where code compliance is required. Licensed contractors and commercial door hardware installers are the primary trade for this component.

This hinge is suited for commercial door installations involving wood or metal doors where a full mortise mount is required. Full mortise hinges are recessed into both the door edge and the frame, providing a flush, clean profile that is standard in commercial construction. The satin chrome finish is commonly specified in institutional and commercial interiors. With eight mounting holes and a class 168FBB designation, this hinge is built for the load and cycle demands of commercial traffic doors.

Key Features

• Full mortise mount type for flush installation in door edge and frame
• Steel hinge body with satin chrome finish for corrosion resistance and commercial aesthetics
• Stainless steel pin for durability under high-cycle use
• Five-knuckle construction supporting 360-degree range of motion
• Eight mounting holes for secure, load-rated fastening
• ANSI A8111 and BHMA Certified to Class 168FBB standards

Compatibility

Compatible with wood and metal commercial doors requiring a full mortise hinge. Refer to the Class 168FBB designation and ANSI A8111 specification when confirming fitment for a given door and frame assembly.

Installation Notes

Installation should be performed by a qualified door hardware technician or licensed contractor familiar with commercial door systems. Mortise the door edge and frame to the exact leaf dimensions before mounting to ensure flush seating and proper operation. Verify that the door weight and frequency of use fall within the load rating for Class 168FBB hinges before installation. Follow all applicable building codes and manufacturer fastener requirements when securing the hinge leaves.
