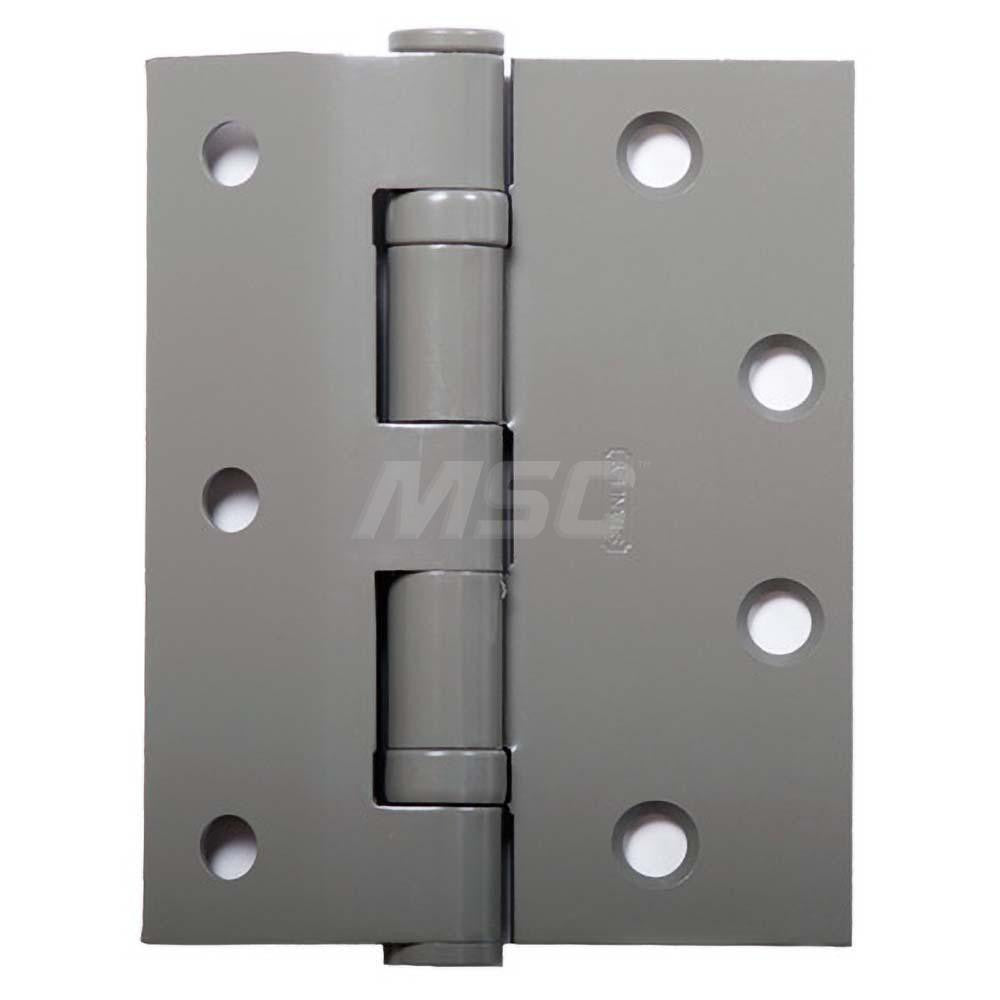

Best 711061684 Full Mortise Commercial Hinge Steel

Product Description

The BEST 711061684 is a full mortise commercial hinge built for steel and wood door applications in demanding service environments. Constructed from steel with a satin chrome finish, this hinge features a stainless steel pin and a 5-knuckle barrel design that supports a full 360-degree range of motion. Each leaf measures 4.5 inches in height and 2 inches in width on both the door and frame sides, making this a symmetrical full mortise configuration. The 711061684 meets ANSI A8111 and BHMA certification standards and carries a Class 168FBB designation. Installation is handled by licensed door hardware technicians or qualified contractors on commercial door assemblies requiring a code-compliant, flush-mounted hinge solution.

This hinge is suited for commercial interior and exterior door applications where a full mortise mount is specified. Compatible with both wood and metal door types, it is commonly installed on high-traffic entry doors, corridor doors, and service doors in commercial and institutional buildings. With 8 mounting holes per hinge unit, the 711061684 provides secure, stable attachment across heavy-use cycles. It is sold individually, making it practical for single-hinge replacement work or new installation projects where specific quantities are needed.

Key Features

• Full mortise mount type for flush installation on door edge and frame
• Steel hinge body with satin chrome finish for corrosion resistance in interior commercial environments
• Stainless steel pin for long-term durability under repeated cycling
• 5-knuckle design with 360-degree range of motion
• Meets ANSI A8111 and BHMA certification requirements
• Class 168FBB designation for commercial-grade performance
• Compatible with both wood and metal door types

Compatibility

Designed as an OEM-style full mortise replacement hinge for commercial steel and wood doors requiring ANSI A8111 and BHMA-certified hardware.

Installation Notes

Full mortise hinges require a precisely routed mortise pocket on both the door edge and the door frame jamb before mounting. Power down any associated electrified door hardware or access control systems before beginning work. Use a chisel or router template to achieve a flush fit; the hinge leaf must sit fully recessed to allow proper door clearance. Work should conform to applicable local building codes and ADA hardware guidelines where required.
