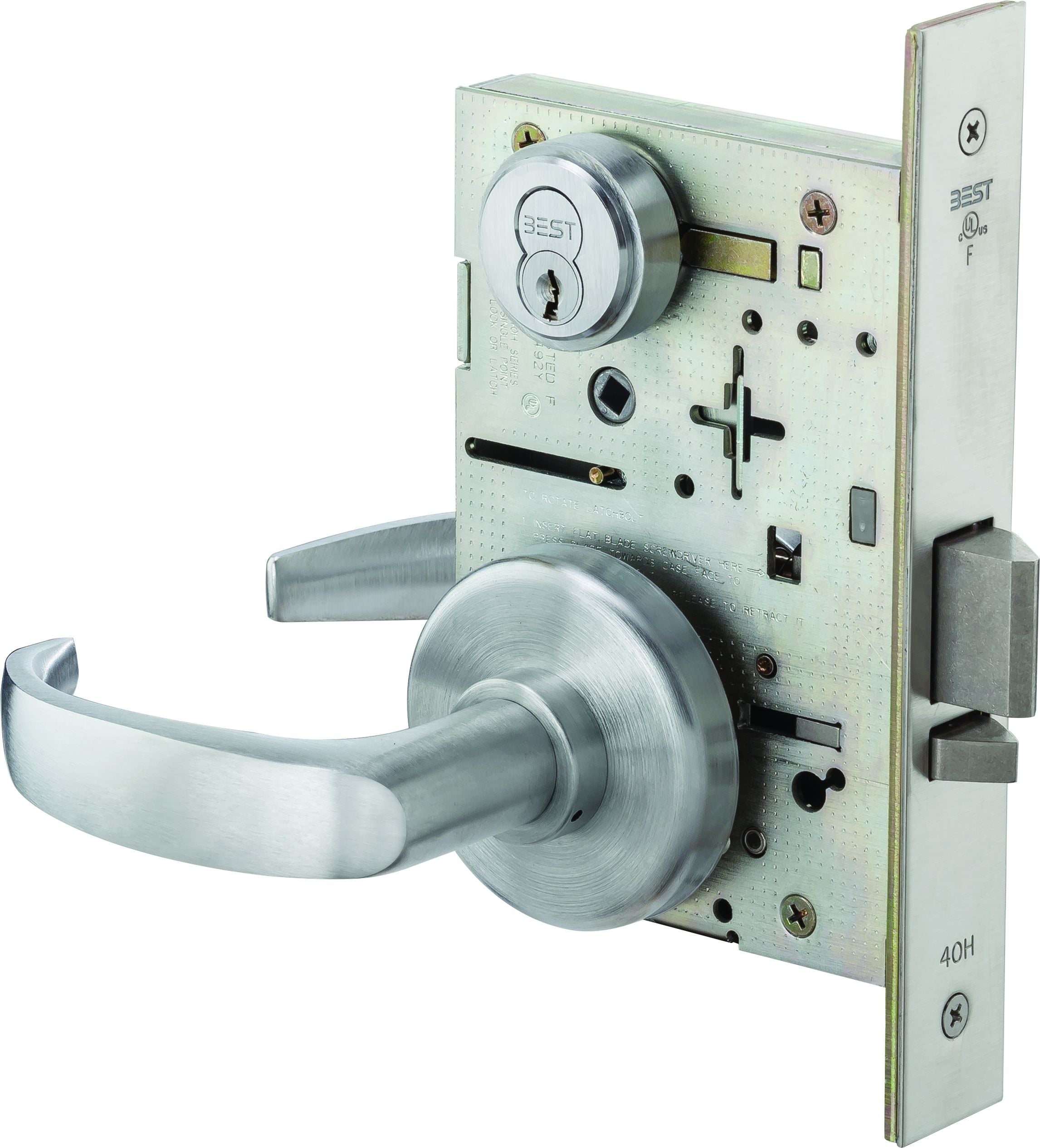

Best 45H7D14H626RH Mortise Lock Storeroom 14 Lever Satin Chrome

Product Description

The BEST 45H7D14H626RH is a storeroom-function mortise lock designed for commercial and institutional door hardware applications. It features a 14-style lever handle mounted on an H rose, configured for right-hand doors, and ships less core to accommodate interchangeable core cylinder systems. The 7-pin housing supports BEST SFIC or compatible interchangeable core formats, making it well suited for facilities running a masterkey or re-keying program. The finish is 626 satin chrome, a durable option for high-traffic interior and exterior openings. Storeroom function means the outside lever is always locked and requires credential or key access to operate, while the inside lever remains free egress at all times.

This mortise lock is intended for commercial buildings, institutional facilities, schools, healthcare environments, and government installations where controlled access at individual openings is required. The right-hand configuration and H rose designation make it a direct specification item for architects, door hardware consultants, and commercial locksmiths replacing or upgrading existing mortise hardware sets. It ships as a single unit and is installed by qualified door hardware technicians or licensed locksmiths familiar with mortise lock bodies and ANSI-standard door preps.

Key Features

• Storeroom function: outside lever always locked, free egress from inside at all times
• 14-style lever on H rose, right-hand door configuration
• 7-pin housing ships less core for interchangeable core cylinder installation
• 626 satin chrome finish for corrosion resistance in high-traffic openings
• Compatible with BEST interchangeable core and masterkey systems
• Sold as a single unit, 13.5 x 13 x 3 inches, 6.4 pounds

Compatibility

Designed as an OEM-specification mortise lock body for commercial door openings requiring storeroom function with an interchangeable core cylinder system. Specific compatible core and chassis models should be confirmed against BEST product documentation prior to ordering.

Installation Notes

Installation should be performed by a licensed locksmith or qualified commercial door hardware technician familiar with mortise lock bodies and ANSI A156.13 door preparations. Ensure the door is properly blocked or secured before removing any existing hardware, and verify the hand of the door matches the right-hand specification of this unit before installation. The core is not included and must be ordered separately and installed per the core manufacturer's instructions. Local building and fire codes may govern egress hardware requirements and should be consulted before specifying storeroom function on any opening.
