Best 1E74-22-C181-RP3-613 Ic 1-3/8in Mortise Cylinder Housing Adr

Product Description

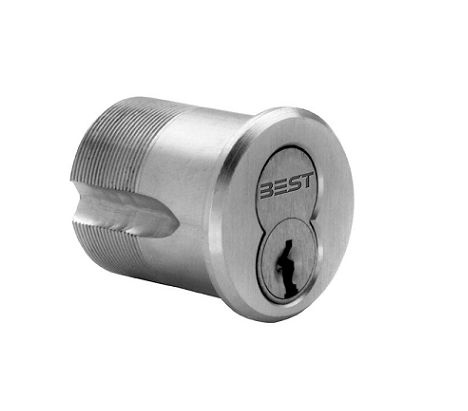

The Best 1E74-22-C181-RP3-613 is an IC 1-3/8in mortise cylinder housing. This SFIC mortise housing features a 7-Pin system and a C181 Adams Rite MS Cam. BEST cylinders are machined from brass or bronze bar stock and feature the BEST interchangeable core, and may be master-keyed into any existing BEST system.

• SFIC Mortise Housing
• 7-Pin system
• 1-3/8" Length

Product Highlights

The Best 1E74-22-C181-RP3-613 mortise cylinder is designed for standard mortise applications and provides additional security with a set screw.

Product Information

Standard Information

• Brand: BEST ACCESS
• Manufacturer Part Number: 1E74-22-C181-RP3-613

Technical Specifications

• Cylinder Type: SFIC Mortise Housing
• Num Pins: 7-pin

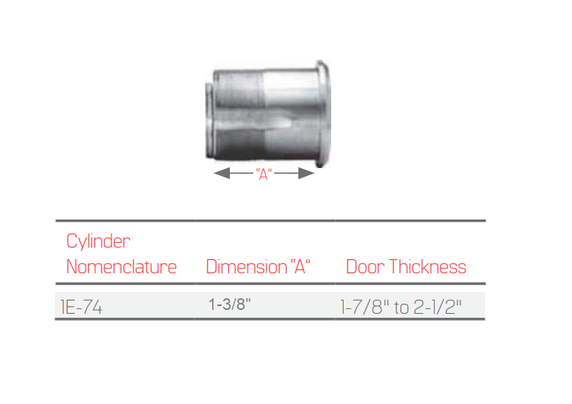

• Cylinder Length: 1-3/8 Inch
• Cylinder Diameter: 1-5/32"
• Cam Type: Adams Rite
• Cam Number: C181
• Rings: RP3 (for 7 pin) package is supplied standard
