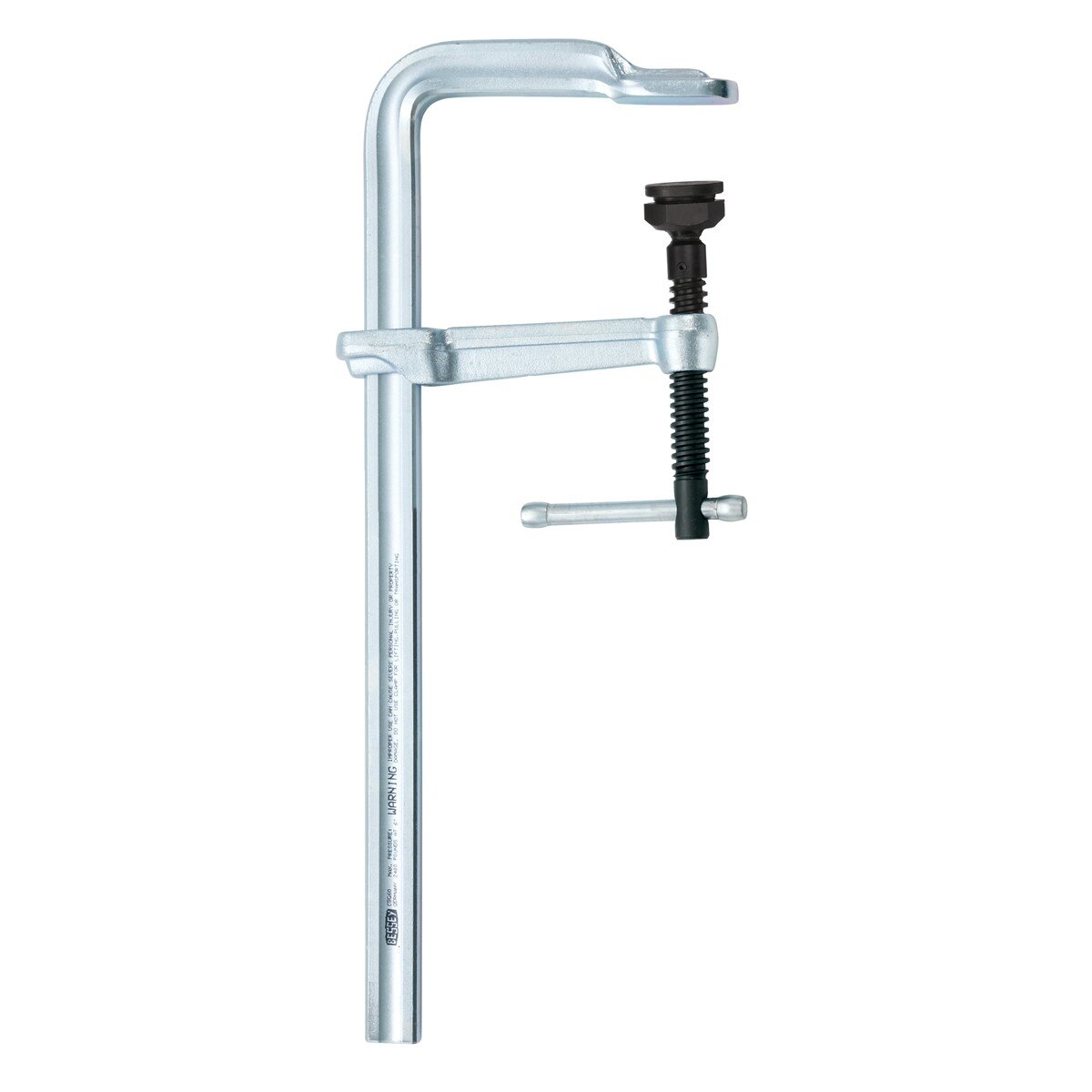

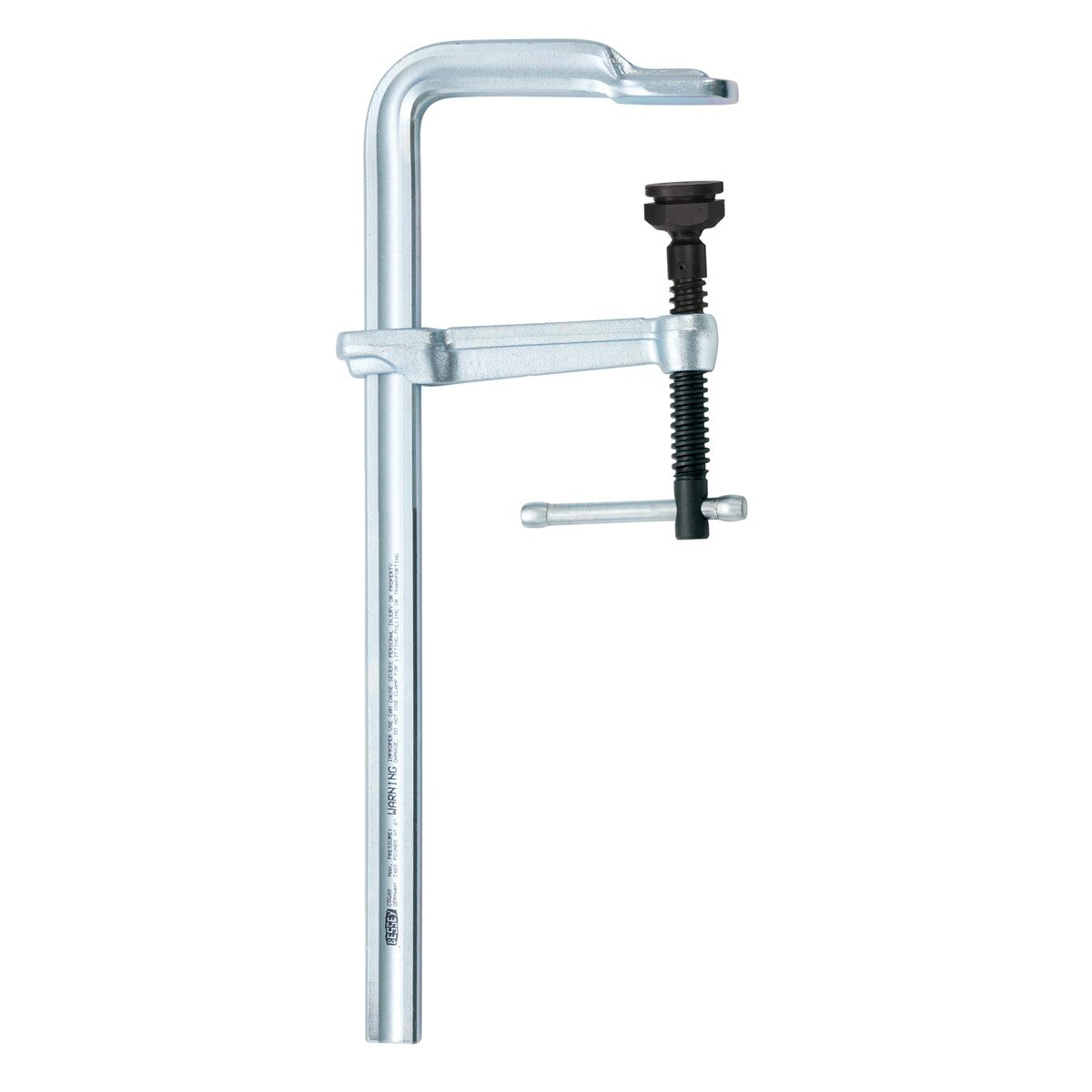

Bessey SQ-8 F-style Welding Clamp 8x5.5 Inches 2660 Lb

Product Description

The BESSEY SQ-8 is a heavy-duty F-style welding clamp designed for metal fabrication and structural welding applications. It features a forged sliding arm machined from tempered steel for extended service life under repeated load cycles. The high-carbon Acme threaded screw is spatter resistant and tempered to deliver a rated clamping force of 2660 pounds. The heavy-duty pad protects workpiece surfaces during clamping. At 5.5 pounds, this clamp is built for sustained use in professional shop and field welding environments. Fabricators, ironworkers, and welding contractors are the primary installers and users of this tool.

This clamp is suited for heavy-duty clamping tasks in welding fabrication shops, structural steel work, and metal assembly. With an 8-inch throat depth and 5.5-inch opening capacity, it accommodates a range of material thicknesses and joint configurations commonly encountered in professional metalworking. The spatter-resistant screw reduces maintenance time in active welding environments where weld spatter is a routine concern.

Key Features

• Forged sliding arm in tempered steel for long-term durability under heavy clamping loads
• High-carbon Acme threaded screw tempered for greater load capacity and service life
• Spatter-resistant screw design reduces maintenance in active welding environments
• Heavy-duty pad protects workpiece surfaces during clamping
• 2660 lb rated clamping force for demanding fabrication tasks
• F-style design provides deep throat access for varied joint configurations

Compatibility

Designed as a general-purpose F-style welding clamp for use in professional metal fabrication, structural welding, and heavy-duty clamping applications.

Installation Notes

This clamp is intended for use by welding professionals and trained fabricators. Inspect the clamp for wear, cracks, or thread damage before each use and do not exceed the rated clamping force. Keep the threaded screw clean of excessive spatter buildup to maintain smooth operation and accurate load delivery. Always secure the workpiece fully before striking an arc or applying load.

Technical Specifications

• Clamping Force: 2660 lb
• Throat Depth: 8 inches
• Opening Capacity: 5.5 inches
• Screw Type: High-carbon Acme threaded, spatter resistant
• Arm Material: Forged tempered steel
• Weight: 5.5 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 5

Standard Information

• Brand: BESSEY
• Manufacturer Part Number: SQ-8
