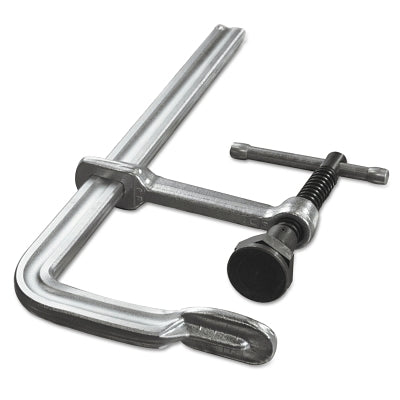

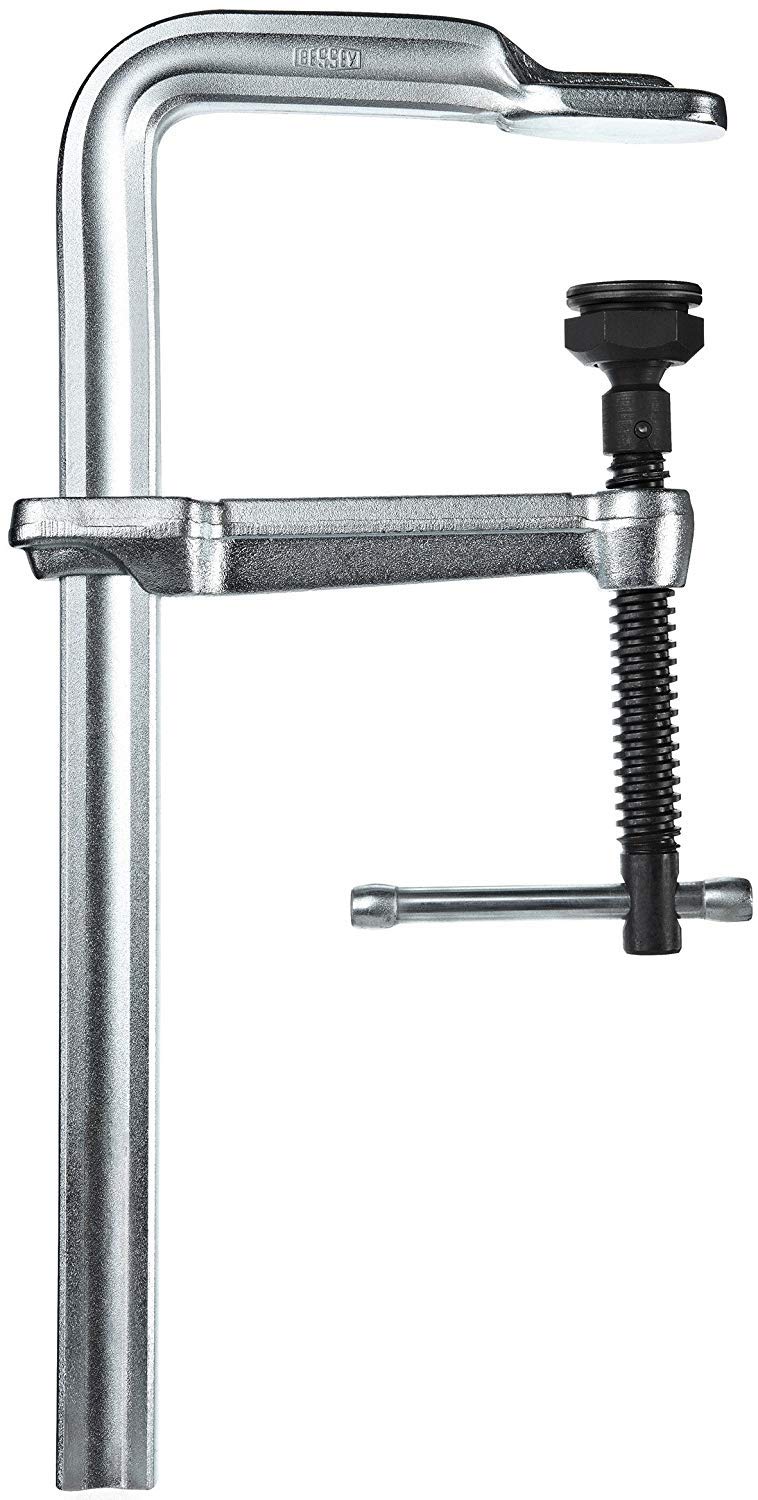

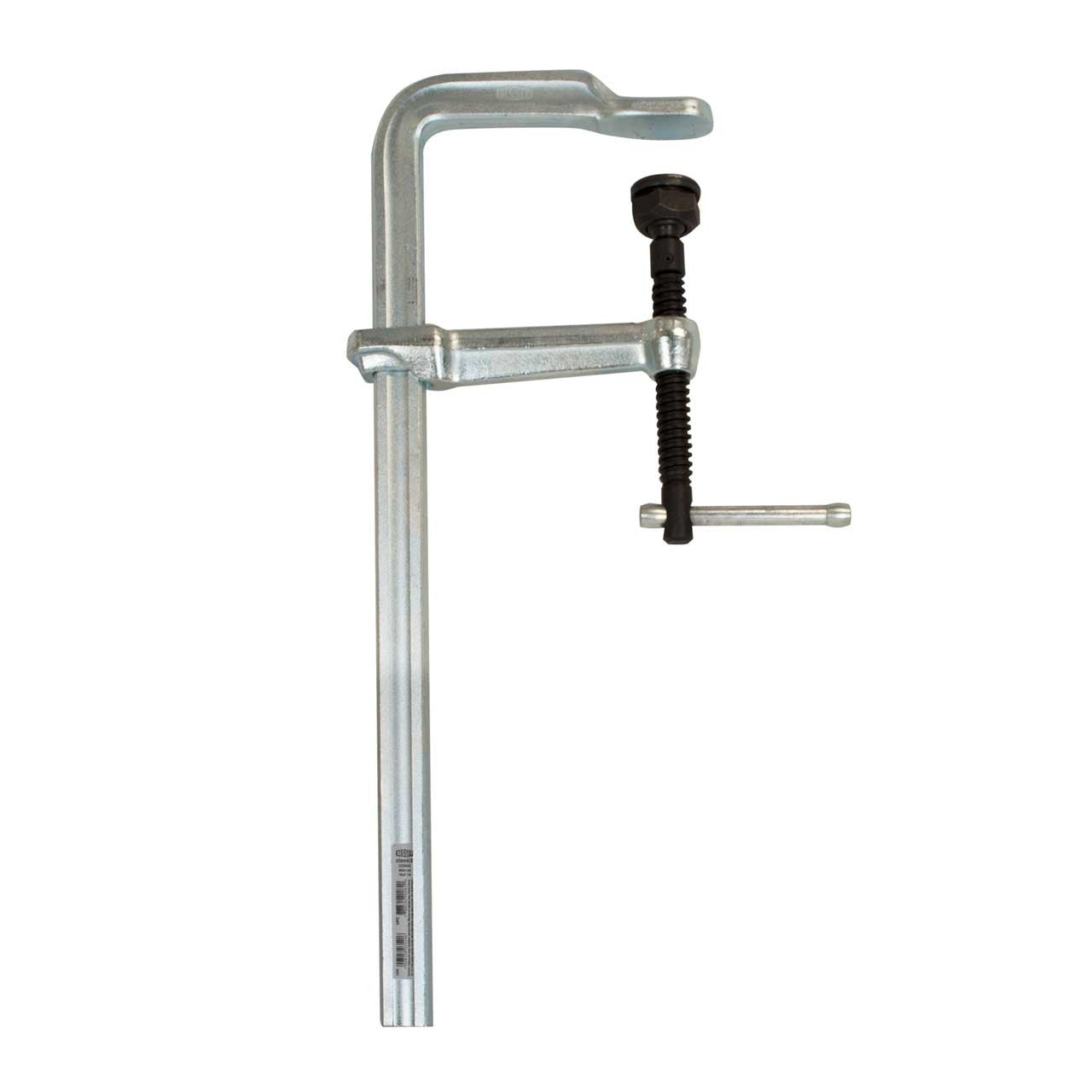

Bessey GSM50 Sliding Arm Bar Clamp 20 Inches 5 1/2 Inches Deep

Product Description

The Bessey GSM50 Sliding Arm Bar Clamp is an essential tool for any professional or DIY enthusiast. The bar clamp offers a clamping capacity of 20 inches and a 5 1/2 inches throat depth, making it versatile for various applications.

• Clamping force up to 11,000 N with a tightening torque of 40 Nm
• Special heat-resistant pressure plate, tilted up to 35 degrees
• Durable all-steel construction with high-load capacity

Product Highlights

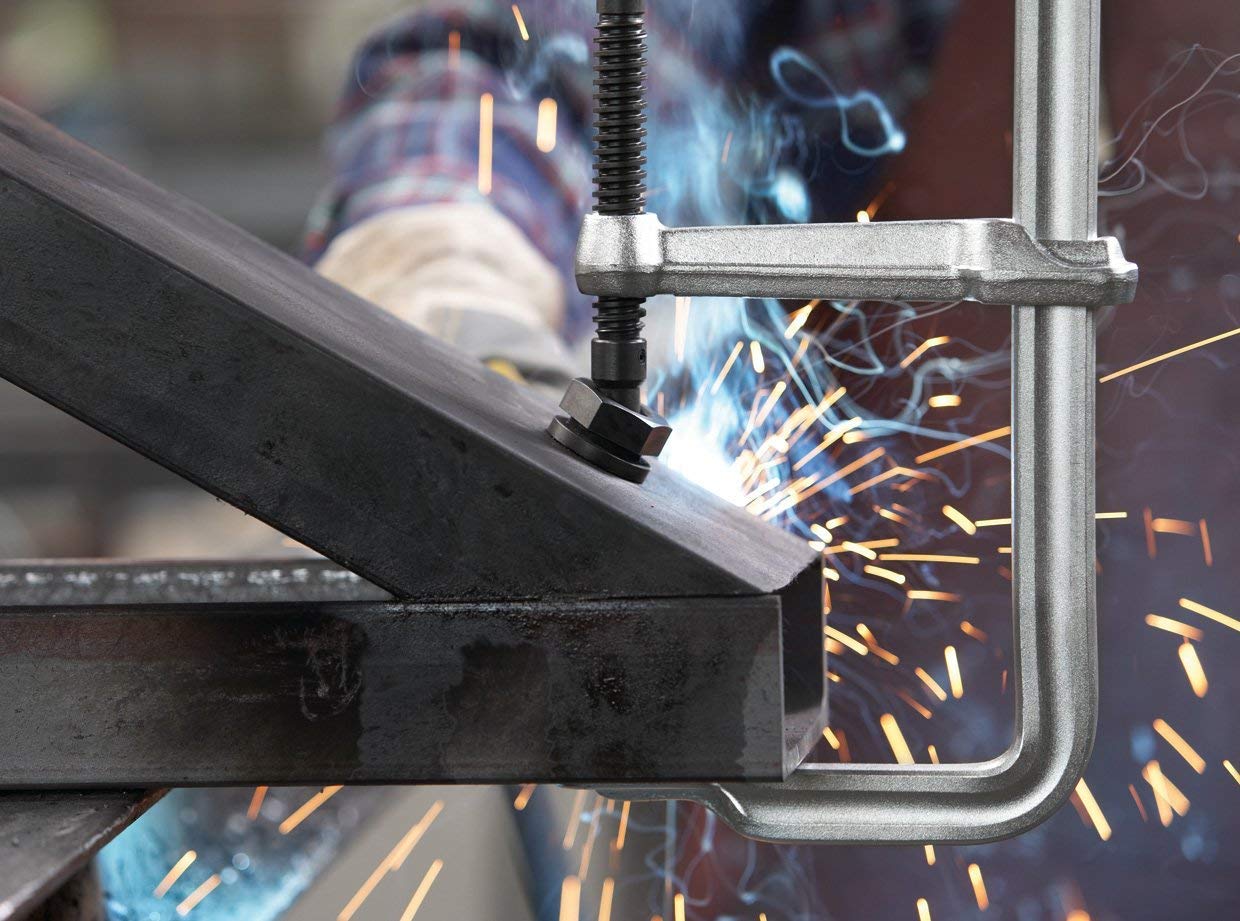

Built for heavy-duty tasks, the Bessey GSM50 features a sliding T-handle for easy operation and a heat-treated high carbon ACME threaded spindle for durability and high-load capacity. This clamp is ideal for industrial use.

Product Information

Standard Information

• Brand: Bessey
• Model: GSM50
• Category: Bar Clamps
• Color: Silver

Technical Specifications

• Clamping Capacity: 20 inches
• Throat Depth: 5 1/2 inches
• Clamping Force: 2,660 lb
• Bar Width: 19/32 inches
• Bar Thickness: 1 3/16 inches
• Spindle Diameter: 0.775 inches
• Weight: 8.14 pounds
• Dimensions: 11.5 x 25 x 2 inches
