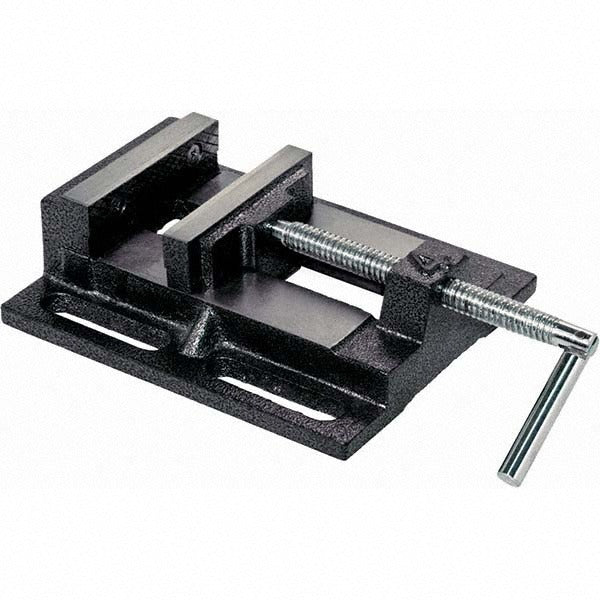

Bessey BV-DP40 Drill Press Vise 4 in Jaw Horizontal

Product Description

The BESSEY BV-DP40 is a horizontal drill press vise built for secure workpiece clamping during drilling operations. Constructed from ductile iron with serrated steel jaws, it delivers the grip and rigidity needed to hold material firmly against drill press table forces. The vise features a 4-inch jaw width, a 4.5-inch maximum jaw opening, and a 1.125-inch jaw height, making it suitable for a wide range of stock sizes. A continuous-nut spindle operation allows smooth, repeatable jaw travel. At 7.46 pounds with a stationary base, it stays planted on the table without shifting during use.

This vise is designed for use on drill press tables in machine shops, maintenance facilities, and trade workshops. It suits applications where a workpiece must be held flat and square for vertical drilling. The stationary base and horizontal orientation make it a reliable choice for repetitive production setups or single-piece service work. Machinists, fabricators, and maintenance technicians commonly use this type of vise when precision hole placement is required. The 9.25-inch base length and 7-inch base width provide a stable footprint on standard drill press tables.

Key Features

• Ductile iron vise body for durability and resistance to impact loading
• Serrated steel jaws provide positive grip on metal, wood, and plastic workpieces
• 4.5-inch jaw opening capacity accommodates a wide range of stock sizes
• Continuous-nut spindle operation allows smooth, controlled jaw movement
• Stationary base keeps the vise fixed in position during drilling
• Compact overall height of 2.25 inches minimizes interference with drill press travel

Compatibility

Designed as an OEM-style stationary drill press vise suitable for use on standard drill press tables requiring a horizontal, fixed-base clamping solution.

Installation Notes

Installation is typically performed by a machinist or maintenance technician. Secure the vise to the drill press table using the base mounting slots and appropriate T-bolts or clamps rated for the table slot dimensions. Ensure the table and vise surfaces are clean and free of chips before mounting to maintain a flat seating surface. Always power down and lock out the drill press before repositioning or removing the vise.
