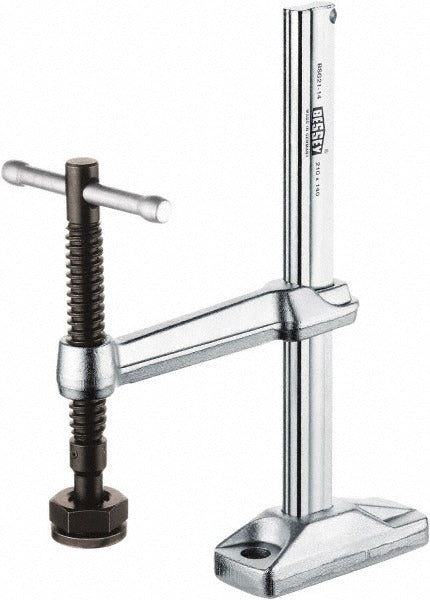

Bessey BSG21-14 Manual Hold Down Clamp 2650 Lb

Product Description

The BESSEY BSG21-14 is a manual hold down clamp built for heavy-duty workholding applications. It delivers a holding capacity of 2,650 pounds and a matching clamping pressure of 2,650 pounds, making it suitable for demanding fixturing and fabrication tasks. The clamp is constructed from steel for durability under repeated use. With a maximum opening capacity of 8-1/4 inches and a throat depth of 5-1/2 inches, it accommodates a wide range of workpiece thicknesses. It is typically installed by machinists, fabricators, and tooling technicians who require reliable, repeatable clamping force on fixtures, jigs, and work tables.

This hold down clamp is designed for industrial and production environments where manual clamping without pneumatic or hydraulic assist is preferred. It mounts directly to work surfaces via mounting holes, making it straightforward to integrate into existing fixture plates, welding tables, and machining setups. The 7-1/2 inch arm length and 12-5/8 inch clamp height provide clearance for a variety of part profiles. It is well suited for metalworking, woodworking, and general fabrication shops requiring consistent hold down force.

Key Features

• 2,650 pound holding capacity and clamping pressure for heavy-duty workholding
• Maximum opening capacity of 8-1/4 inches to fit a wide range of workpiece sizes
• 5-1/2 inch throat depth for deep-reach clamping on larger fixtures
• Steel construction for long service life under repetitive clamping cycles
• Mounting holes allow direct integration into fixture plates and work tables
• Manual operation requires no pneumatic or hydraulic supply

Compatibility

Designed as an OEM-style replacement and direct-mount hold down clamp for use with standard fixture plates, welding tables, and machining work surfaces requiring a manual clamping solution.

Installation Notes

Installation is performed by tooling technicians or fabricators. Power down or de-energize any associated equipment before positioning the clamp on the work surface. Secure the clamp to the mounting surface using appropriately rated fasteners through the provided mounting holes. Do not exceed the rated 2,650 pound clamping pressure to avoid damage to the clamp or workpiece.
