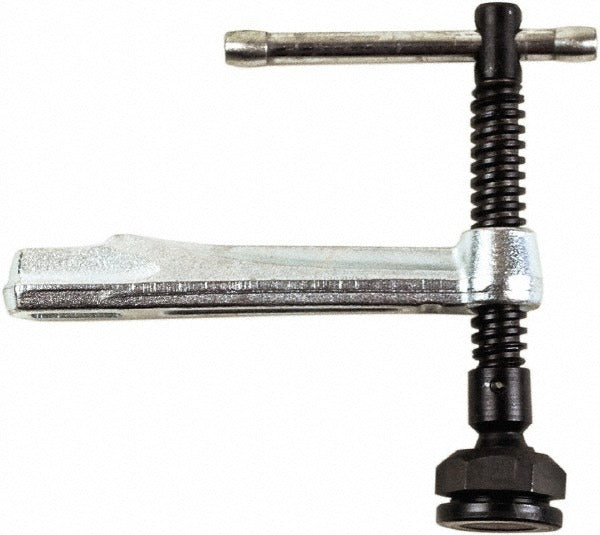

Bessey 3101331 Gsv Bar Pipe Clamping Arm 1770 Lb T-handle

Product Description

The BESSEY 3101331 is a steel replacement clamping arm designed for use with GSV size rails and the DT2400 Series sliding arm clamp system. It delivers 1,770 pounds of clamping pressure through a T-handle spindle assembly, making it a reliable component for heavy-duty pipe and bar clamping tasks. The arm features an 8-inch throat depth, giving technicians and tradespeople adequate clearance for workpieces in fabrication, pipefitting, and structural assembly applications. The package includes the arm, T-handle, heavy-duty MorPad assembly, and spindle. At 3.1 pounds, it is a direct replacement component intended for professional shop and field use.

This clamping arm is suited for industrial and trade environments where bar clamps are used to hold pipe, structural steel, or fabricated assemblies during fitting, welding, or assembly operations. It is a replacement part for existing DT2400 Series clamp setups using GSV size rails. Pipefitters, ironworkers, fabricators, and general contractors working with bar clamp systems will find this a straightforward drop-in component to restore full clamping function to an existing tool.

Key Features

• 1,770 lb (2,400 N) clamping pressure for heavy-duty holding force
• 8-inch throat depth accommodates larger workpieces
• T-handle (Tommy Bar) style for manual torque control
• Steel construction for durability in demanding shop environments
• Includes arm, handle, heavy-duty MorPad assembly, and spindle
• Compatible with DT2400 Series sliding arm and GSV size rails

Compatibility

Designed for use with BESSEY DT2400 Series sliding arm clamps and GSV size rails. This is a replacement arm assembly for existing clamp setups in that product family.

Installation Notes

Installation is typically performed by the equipment operator or maintenance technician familiar with bar clamp systems. Ensure the existing clamp body is fully released and free of load before removing or installing the clamping arm. Verify that the rail size matches GSV specifications before assembly. Follow the clamp manufacturer guidelines for proper spindle seating and MorPad alignment before returning the tool to service.
