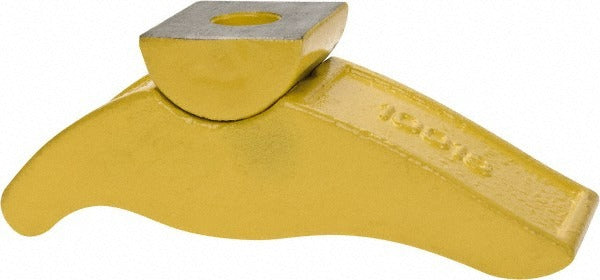

Bessey 1001S Strap Clamp 1 in Stud 3 in Clamping Height Steel

Product Description

The BESSEY 1001S is an adjustable self-positioning strap clamp designed for industrial and fabrication holding applications. Built from steel construction, it accepts a 1 inch stud and handles a maximum clamping height of 3 inches. The clamp measures 9 inches long, 2-7/8 inches wide, and 3-3/8 inches high, making it a compact yet capable workholding solution. With a rated load capacity of 67,000 pounds, the 1001S is engineered for demanding setups where consistent, repeatable clamping force is required. The self-positioning design allows the strap to adjust automatically to the workpiece, reducing setup time and ensuring even contact across the clamped surface.

The BESSEY 1001S is suited for use in machining, welding, and metal fabrication environments where secure workpiece fixturing is essential. It is typically used on milling machines, drill presses, and fixture plates where T-slot or stud-mounted clamping systems are in place. The compact footprint allows placement in tight setups where larger clamps cannot reach. Machinists, tool and die workers, and fabricators are the primary installers of this type of clamp in production and job-shop settings.

Key Features

• Self-positioning strap adjusts automatically to workpiece surface for even clamping contact
• 1 inch stud size compatible with standard T-slot and stud-mount fixture setups
• Maximum clamping height of 3 inches accommodates a range of workpiece thicknesses
• Rated load capacity of 67,000 pounds for high-force machining and fabrication applications
• All-steel construction for durability in machine shop and fabrication environments
• Compact 9 inch length fits tight fixture layouts

Compatibility

Designed as an OEM-style workholding clamp for use with standard 1 inch stud-mount and T-slot fixture systems common in machining and fabrication setups.

Installation Notes

Installation is typically performed by machinists or fabricators using standard hand tools and torque wrenches sized for the 1 inch stud. Always de-energize or disable any machine before mounting or removing clamps from the fixture plate. Verify that the stud, nut, and step block stack are rated to handle the applied clamping load before beginning the operation. Follow applicable shop safety procedures and machine-specific fixturing guidelines when positioning and tightening workholding clamps.
