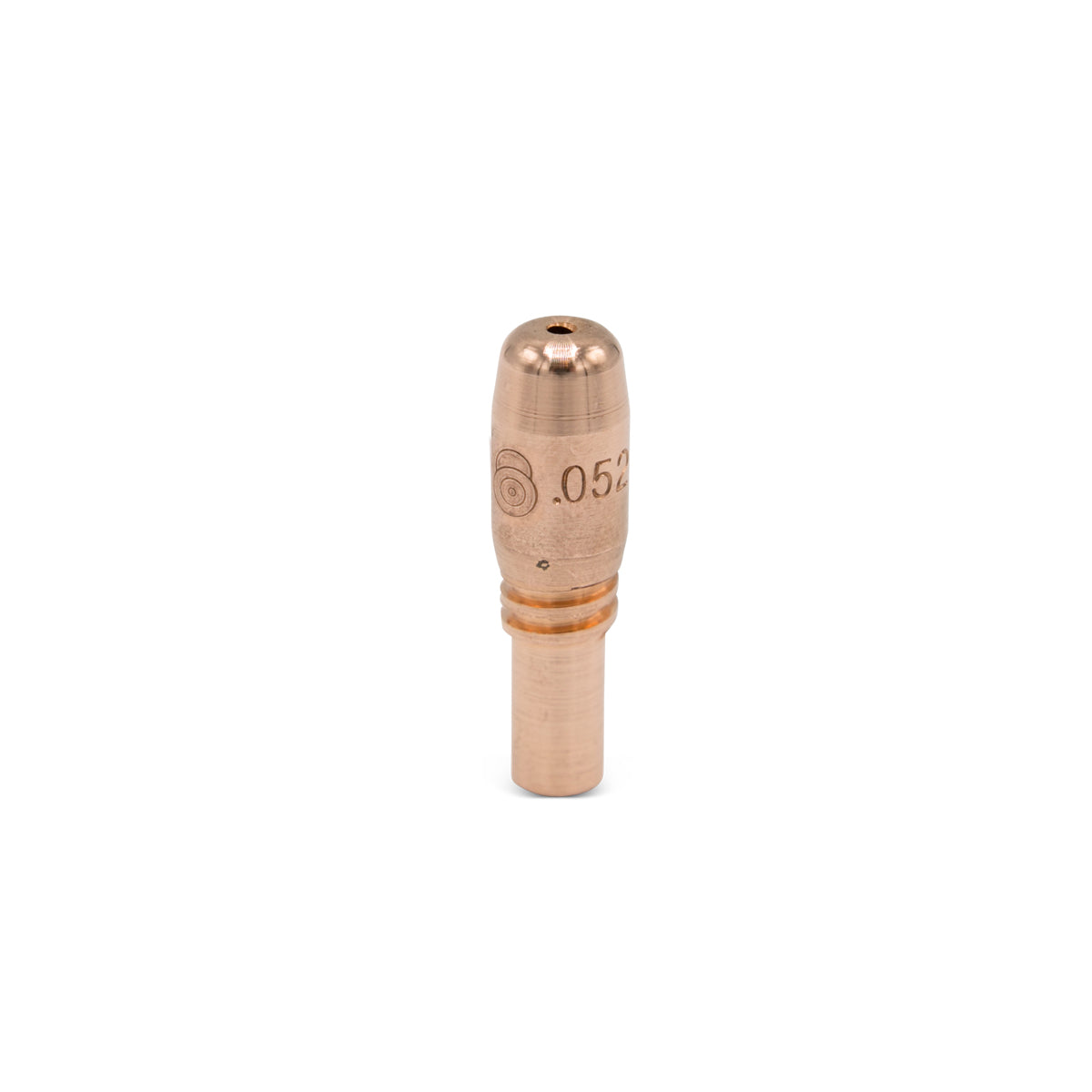

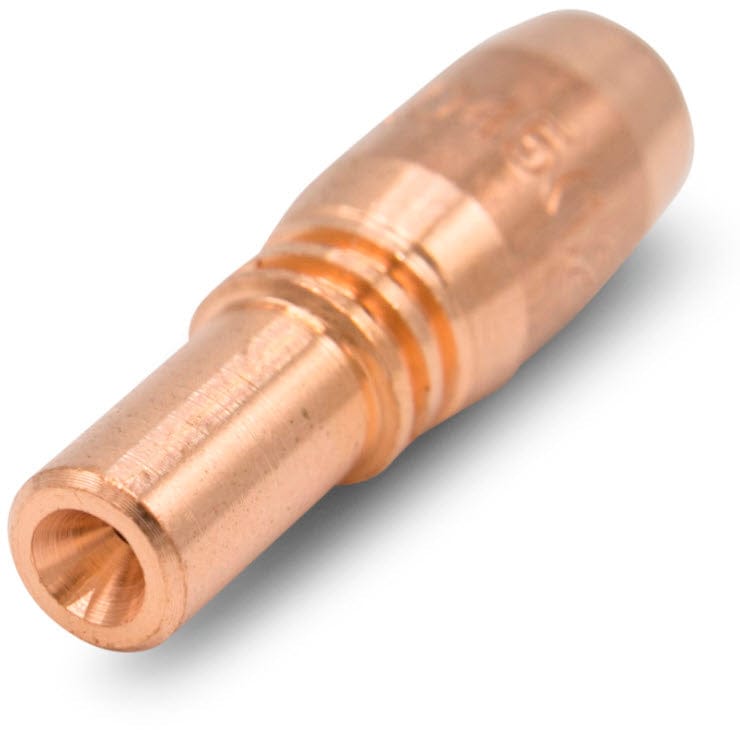

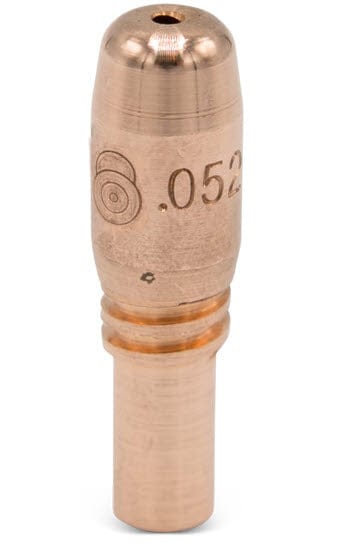

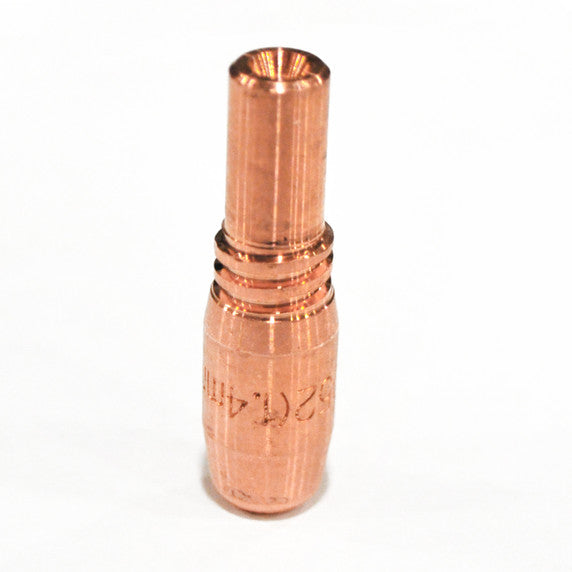

Bernard T-A052CH AccuLock Series Contact Tip .052 inches x 1.25 inches

Product Description

The BERNARD T-A052CH AccuLock Series contact tip accommodates .052" mild steel, aluminum, and stainless steel wire. Designed for use with AccuLock S and AccuLock R gas diffusers and Bernard BTB MIG Guns, Miller MDX 250. These contact tips offer longer life in industrial grade MIG welding applications.

• Tapered mating surfaces ensure optimal electrical conductivity.
• Coarse thread virtually eliminates risk of cross-threading during replacement.
• Long tip tail concentrically aligns the tip within the diffuser ensuring quick, accurate replacement.

Product Highlights

AccuLock contact tips are designed for durability and longer life, handling liner trim length errors and erratic wire feeding.

Product Information

Standard Information

• Brand: BERNARD
• Manufacturer Part Number: T-A052CH
• Country of Origin: United States

Technical Specifications

• MIG Wire Size: 0.052"
• Length: 1.25"
• Series: AccuLock™
• MIG Gun Model: Bernard™ BTB Gun, Miller® MDX™-250
• Consumables Type: Contact Tip
• Item: Contact Tip
• Size: 0.052 in
• Type: Heavy Duty
• Process: MIG Welding (GMAW)
• Material: Copper
• Tip Shape: Cylindrical
• Duty Rating: Heavy Duty
• For MIG Guns: Bernard(TM) BTB MIG Guns Series, Miller(R) MDX(TM) 250 MIG Guns Series
• Sub-Category: MIG Gun Contact Tips
• Amperage Range: 250-600
• Overall Length: 1.25 in
• Connection Type: Threaded
• Maximum Current: 600 A
• Wire Size (In.): 0.052
• Connection Style: Threaded
• Outside Diameter: 0.35 in
• For Nozzle Series: AccuLock R, AccuLock S
• Welding Processes: MIG Welding (GMAW)
• For MIG Gun Series: BTB, Miller MDX 250
• Max. Wire Diameter: 0.052 in
• Compatible with Brand: Miller, Tregaskiss
• Compatible with Model: Bernard BTB MIG Guns, Miller(R) Style,Tregaskiss Air-Cooled Robotic MIG Guns
• Compatible with Series: BTB, Miller MDX 250
• For Gas Diffuser Number: D-A1, D-A2, D-ATSH, D-ATTH, DS-A1, DS-A2
• For MIG Gun Series (Merch): BTB; Clean Air; Dura-Flux; FILTAIR; Q-Gun; S-Gun;, MDX-100; MDX-250; MDX-250 EZ-Select
• Country of Origin (subject to change): United States
• Wire Diameter: 0.052
• Maximum Wire Outside Diameter: 0.052 in
• Tip Material: Copper
• Tip Size: 0.35 in
• For Use with: BTB Series MIG Gun, Miller MDX-250 Series MIG Gun
• MFG: T-A052CH
• Subcategory: Welding Consumables
• Contact Tip Series: AccuLock T
• Maximum Wire Diameter: 0.052 in
• Maximum Amperage: 600 A
• Package: 10
