Product Description

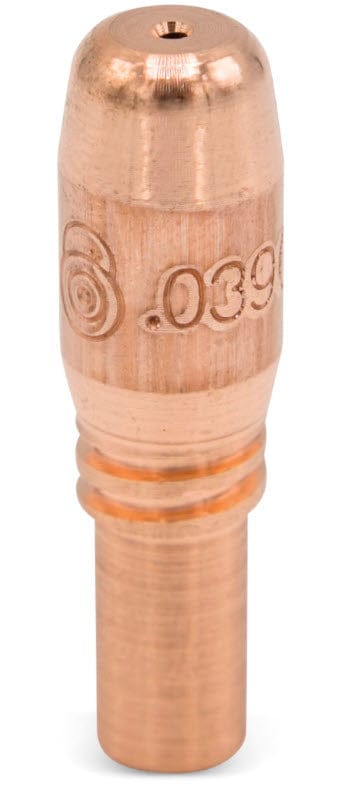

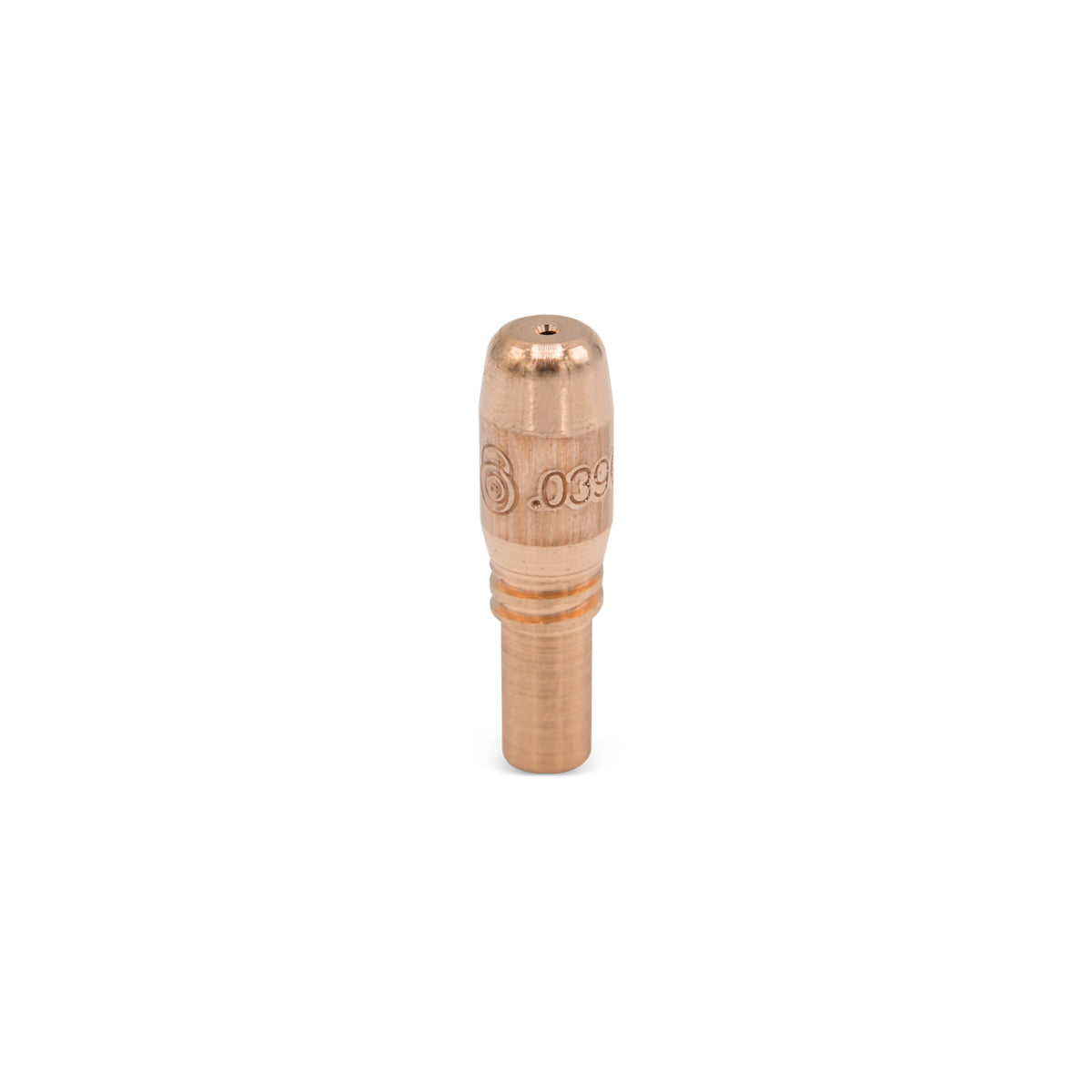

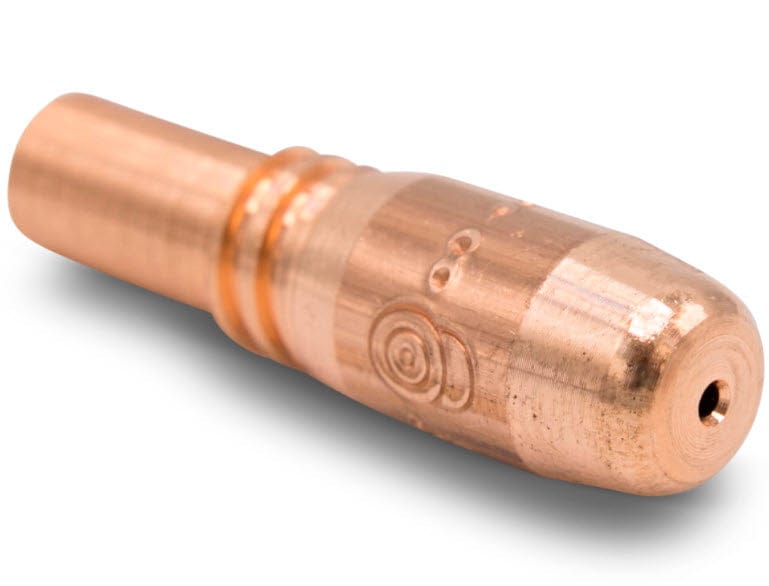

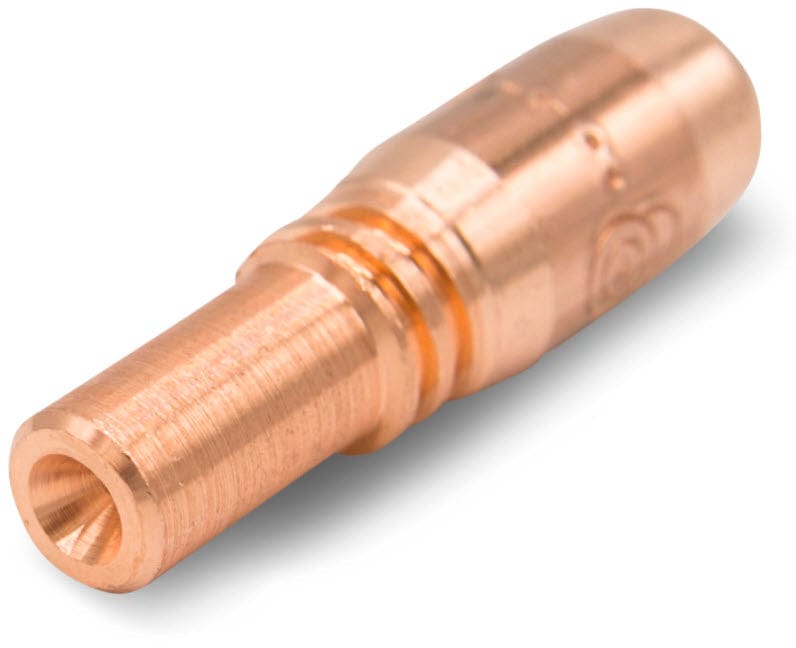

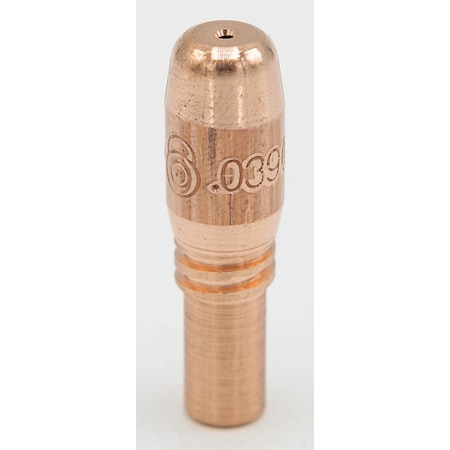

The BERNARD T-A039CH AccuLock series contact tips accommodate .039 mild steel, aluminum, and stainless steel wire. These contact tips are designed for use with AccuLock S and AccuLock R gas diffusers and offer longer life in industrial grade MIG welding applications. They are compatible with Bernard BTB and Miller MDX-250 MIG guns.
- Offer longer life in industrial grade MIG welding applications.
- Feature tapered mating surfaces to ensure optimal electrical conductivity.
- Designed to keep consumables locked in place.
Product Highlights
AccuLock contact tips provide reliable performance for MIG welding applications, ensuring consistent wire feeding and arc stability.
Product Information
Standard Information
-
Brand: BERNARD
-
Manufacturer Part Number: T-A039CH
-
Country of Origin: United States
Technical Specifications
-
MIG Gun Model: Bernard™ BTB Gun, Miller® MDX™-250
-
MIG Wire Size: .039"
-
Length: 1.25"
-
Series: AccuLock™
-
Consumables Type: Contact Tip
-
Item: Contact Tip
-
Size: 0.039 in
-
Type: Quick Installation
-
Process: MIG Welding (GMAW)
-
Features: Cooling Tail
-
Material: Copper
-
Tip Shape: Standard
-
Duty Rating: Heavy Duty
-
For MIG Guns: Miller(R) MDX(TM) 250
-
For Use With: Miller(R) MDX(TM) 250 MIG Guns Series
-
Sub-Category: MIG Gun Contact Tips
-
For Wire Type: Flux-Cored, Solid
-
Amperage Range: 250-600
-
Overall Length: 1.25 in
-
Connection Type: Threaded
-
Maximum Current: 600 A
-
Wire Size (In.): 0.039 in
-
Connection Style: Threaded
-
Outside Diameter: 0.35 in
-
For Nozzle Series: AccuLock S
-
Welding Processes: MIG Welding (GMAW)
-
Contact Tip Number: T-A039CH
-
For MIG Gun Series: BTB, MDX-250
-
Max. Wire Diameter: 0.039 in
-
Compatible with Brand: Bernard, Miller
-
Compatible with Model: 1770041, 1770042, 1770043, 1770046
-
Compatible with Series: BTB, MDX-250
-
For Gas Diffuser Number: D-A1, D-A2, D-ATSH, D-ATTH, DS-A1, DS-A2
-
For MIG Gun Series (Merch): BTB; Clean Air; Dura-Flux; FILTAIR; Q-Gun; S-Gun;, MDX-100; MDX-250; MDX-250 EZ-Select
-
Wire Diameter: .039
