Bernard Q3015AE8CMC BTB .035 in Air Cooled MIG Gun 300 Amp (15 ft Cable, 45 degree Neck)

Product Description

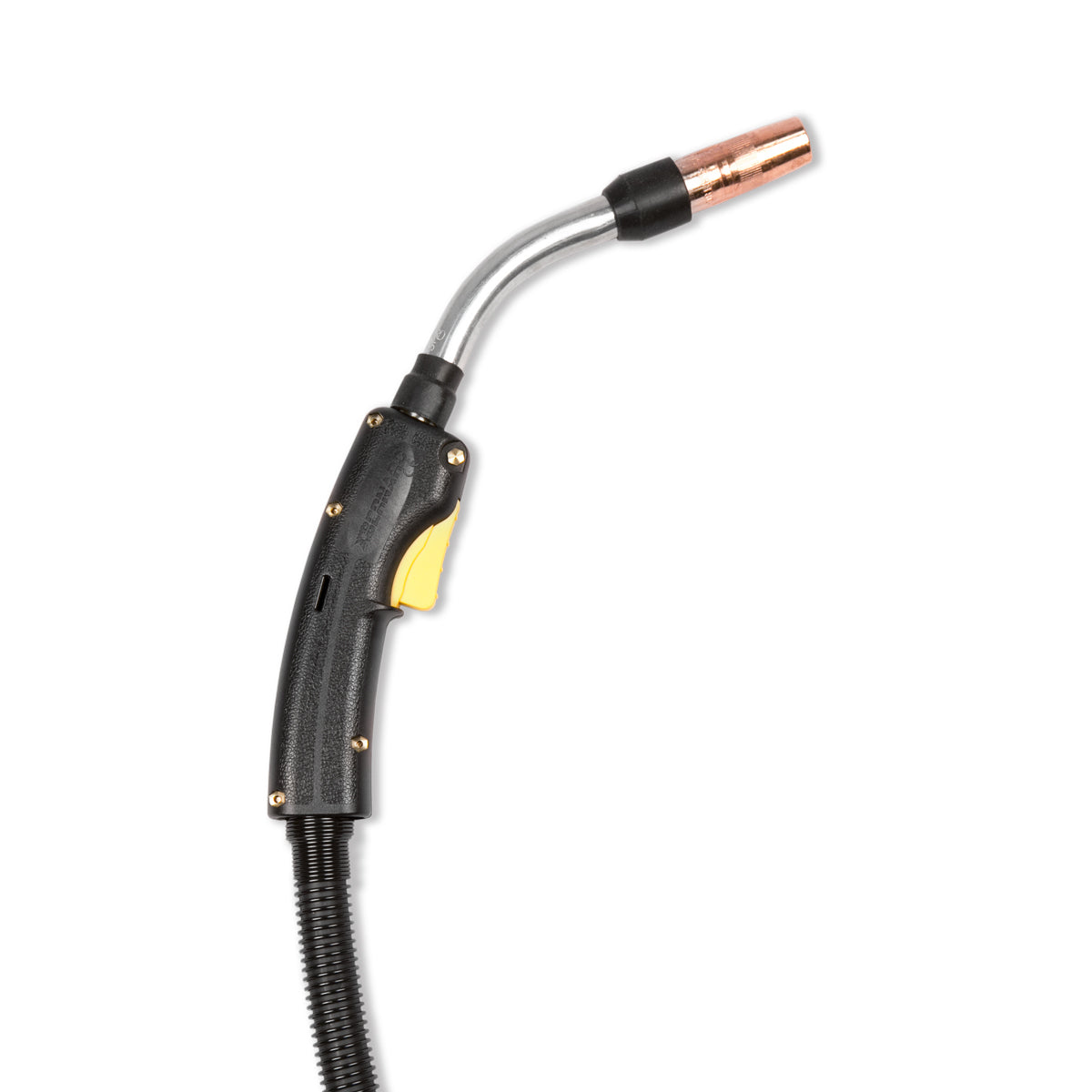

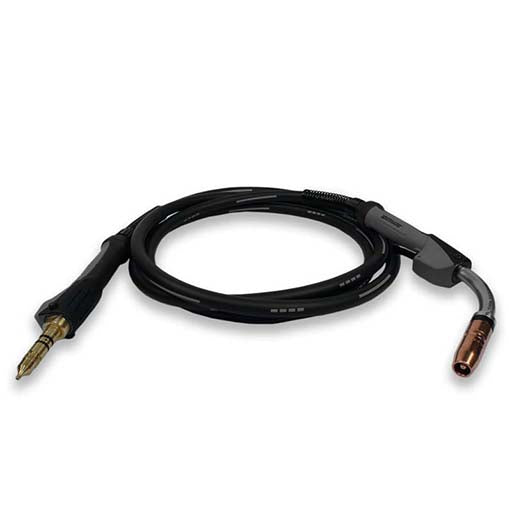

The Bernard Q3015AE8CMC is a BTB series air-cooled MIG gun rated 300 A for 0.035 in (0.9 mm) wire. It features a 15 ft Hytrel polymer cable with a Miller style power pin, a rotatable medium 45 degree aluminum armored neck, Centerfire consumables, and a universal conventional rear-load liner. The gun uses a B Series small curved handle with a standard trigger for manual MIG welding applications in industrial environments.

• Air-cooled BTB MIG gun rated 300 A for 0.035 in (0.9 mm) wire with Centerfire consumables
• 15 ft Hytrel polymer cable with Miller style power pin and universal conventional rear-load liner
• B Series small curved handle, standard trigger, and rotatable medium 45 degree aluminum armored neck

Product Highlights

Air-cooled 300 A BTB MIG gun for .035 in wire with 15 ft Hytrel cable and Miller style power pin

Product Information

Standard Information

• Brand: BERNARD
• Manufacturer Part Number: Q3015AE8CMC

Technical Specifications

• Brand: Bernard
• Manufacturer Part Number (MPN): Q3015AE8CMC
• Trade Name / Series: BTB
• Cooling Method: Air-cooled
• Maximum Amperage: 300 A
• Wire Size Compatibility: 0.035 in (0.9 mm)
• Cable Length: 15 ft
• Cable Material: Hytrel polymer
• Rear Connection / Connector: Miller style power pin (Miller-compatible)
• Handle: B Series small curved handle
• Trigger: Standard trigger
• Neck: Rotatable medium 45 degree aluminum armored neck
• Contact System / Consumables: Centerfire consumables for 0.035 in
• Liner Type: Universal conventional rear-load liner (compatible with AccuLock S, Universal Conventional, QUICK LOAD liners)
• Duty Cycle: 100% with CO2; 60% with mixed gases
• Typical Applications: Heavy equipment, shipbuilding, pipeline, fabrication, construction, maintenance and repair, manufacturing
