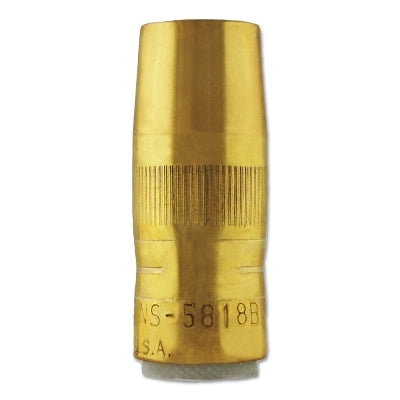

Bernard NS-5818B Centerfire MIG Nozzle 1/8 in Recess 5/8 in Bore For T Series Tip

Product Description

The Bernard NS-5818B Centerfire MIG Nozzle is designed for professional welding applications. Featuring a 1/8 inch recess and a 5/8 inch bore, this nozzle is compatible with T Series tips and a variety of MIG welding guns.

• Built-in spatter shield for smoother gas flow
• Provides better arc starts and less spatter
• Compatible with Bernard and Miller brands

Product Highlights

High-performing and easy to use, the Bernard NS-5818B Centerfire MIG Nozzle enhances welding efficiency by reducing oxidation and contamination.

Product Information

Standard Information

• Manufacturer: Bernard
• Country Of Origin: US
• Hazmat: N
• Prop 65 Warning Required: Y
• Prop 65 Warning Message: WARNING: This product can expose you to chemicals including Nickel Compounds, and Lead. For more information go to www.P65Warnings.ca.gov

Technical Specifications

• Nozzle Shape: Straight
• Bore Diameter: 5/8 in
• Connection Size: 7/8 in
• Connection Type: Threaded
• Inside Diameter: 0.625 in
• Outside Diameter: 0.875 in
• Overall Length: 2.25 in
• Material: Brass
• Nozzle Design: 3-Piece
• For Use With: BTB, Clean Air, Dura-Flux, FILTAIR, Q-Gun, S-Gun, XR-Aluma-Pro, XR-Pistol
• Nozzle Number: NS-5818B
• Duty Rating: Standard Duty
• Welding Processes: Flux-Cored Welding (FCAW), MIG Welding (GMAW)
• For Contact Tip Series: Centerfire
