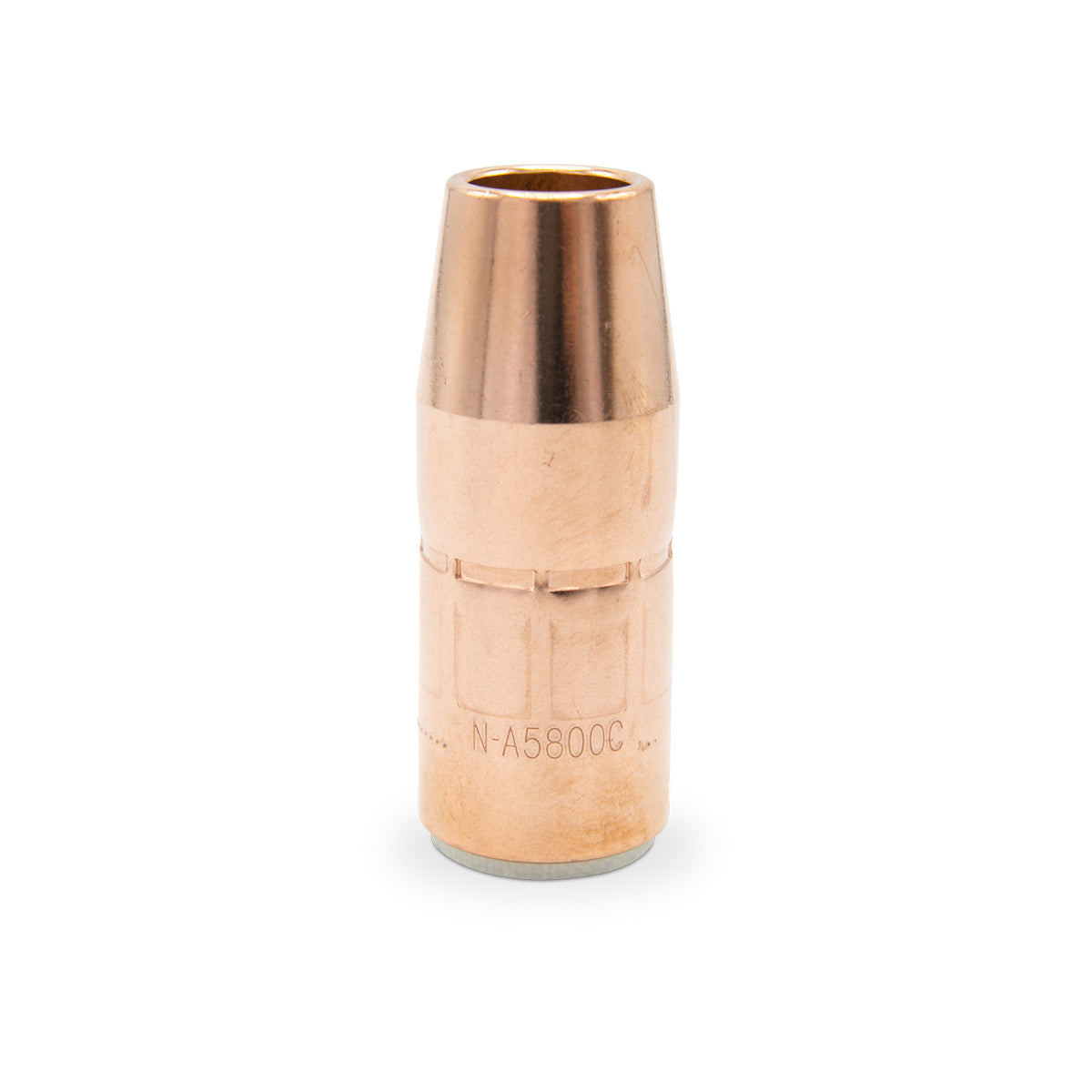

Bernard N-A5800C AccuLock S Series Nozzle 0.625 inches Bore

Product Description

The BERNARD N-A5800C large AccuLock S nozzle is made of copper and features a 0.625" bore, positioning the tip flush. It is designed to be paired with AccuLock S contact tips, gas diffusers, liners, power pins, and power caps. The nozzle is compatible with Bernard BTB Gun, Miller MDX-250, and Miller MDX 250 EZ-Select MIG guns.

• Load and Lock for better productivity
• Steel retaining ring on the diffuser helps to keep the threaded nozzle from loosening during use and cleaning
• Tapers lock consumables for excellent electrical conductivity

Product Highlights

The BERNARD AccuLock S nozzle ensures a secure fit and optimal performance for MIG welding applications. Its robust design and compatibility with various MIG gun models make it a versatile choice.

Product Information

Standard Information

• Brand: BERNARD
• Manufacturer Part Number: N-A5800C
• Country of Origin: Canada

Technical Specifications

• Bore: 0.625"
• Series: AccuLock S
• Consumables Type: Nozzle
• Tip Relationship: Flush
• MIG Gun Model: Bernard BTB Gun, Miller MDX-250, Miller MDX 250 EZ-Select
• Item: Nozzle
• Size: 0.625 in
• Type: Heavy Duty
• Process: MIG Welding (GMAW)
• Features: Flush Contact Tip Position
• Material: Copper
• Bore (mm): 15.875 mm
• Duty Rating: Heavy Duty
• For MIG Guns: Miller(R) MDX(TM) 250
• For Use With: Miller MDX 250 MIG Guns Series
• Nozzle Shape: Conical
• Sub-Category: MIG Gun Nozzles
• Bore Diameter: 5/8 in
• Nozzle Number: N-A5800C
• Amperage Range: 250-600
• Bore Dia. (In.): 5/8 in
• Connection Type: Threaded
• Inside Diameter: 0.625 in
• Insulation Type: Self-Insulated
• Wire Size (In.): 0.023-0.125
• Connection Style: Threaded
• Outside Diameter: 1.0625 in
• Welding Processes: MIG Welding (GMAW)
• For MIG Gun Series: BTB, MDX-250, MDX-250 EZ-Select
• Compatible with Brand: Bernard, Miller
• Compatible with Model: 1770041, 1770042, 1770043, 1770046
• Compatible with Series: BTB, MDX-250, MDX-250 EZ-Select
• For Contact Tip Series: AccuLock S
• For Gas Diffuser Number: D-A1, D-A2
• For MIG Gun Series (Merch): BTB; Clean Air; Dura-Flux; FILTAIR; Q-Gun; S-Gun;, MDX-250, MDX-250 EZ-Select
• Nozzle to Tip Relationship: Flush
• Nozzle-to-Tip Relationship: Flush (Fixed)
• Brand: Bernard
• Category: Welding Nozzles
