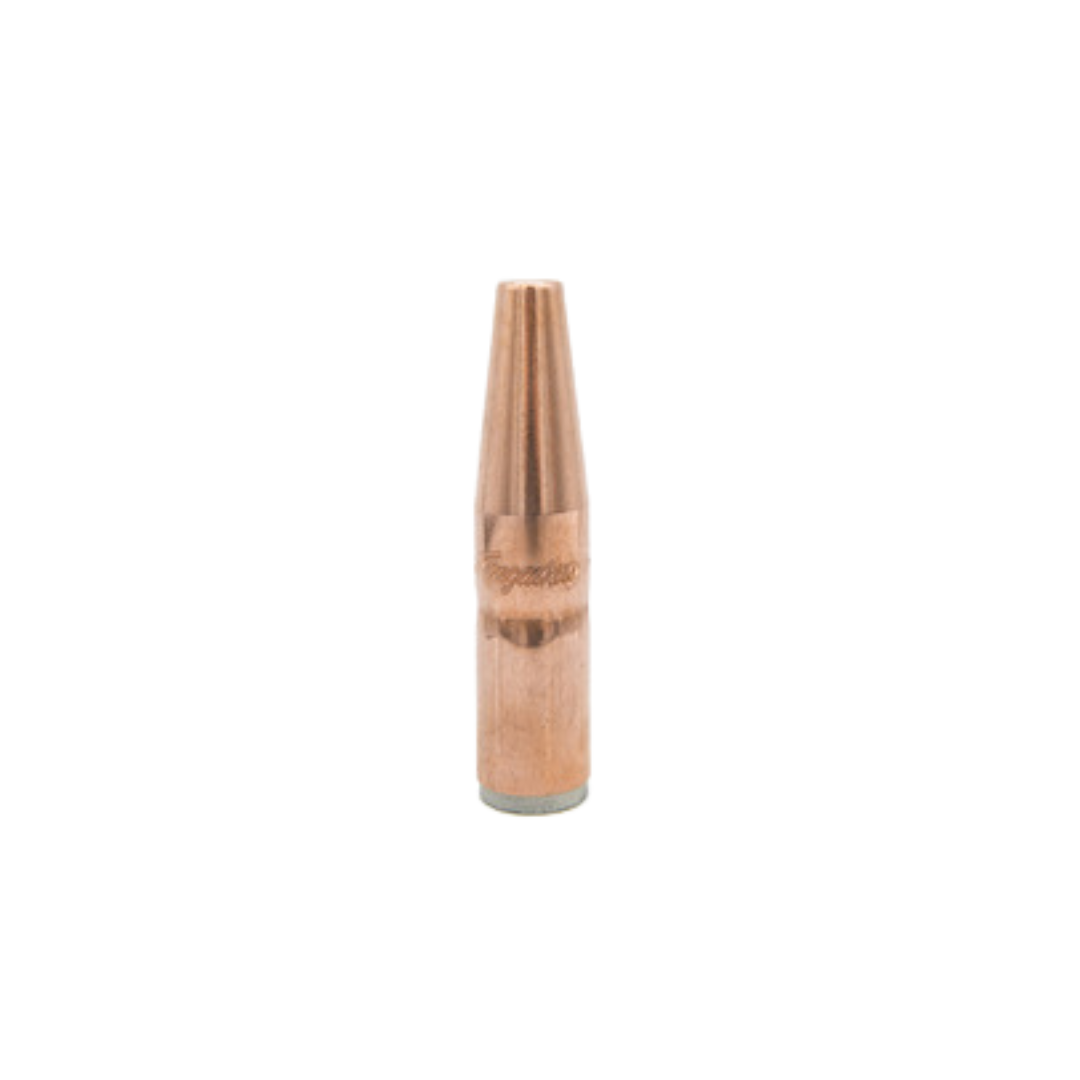

Bernard 401-43-62 Nozzle, 5/8 inches Bore X 1/8 inches Rec Tip X 0.93OD

Product Description

The BERNARD 401-43-62 is a nozzle with a 5/8" bore and a 1/8" recess tip with a 0.93OD. It is designed with high-temperature resistant fiberglass insulators that electrically insulate the nozzle from the diffuser. The heavy-duty crimp holds all three layers together, ensuring durability. It is for use with TOUGH LOCK diffuser 404-52-25 or 404-53-25.

• Standard Duty
• Air-Cooled
• Thread-On
• High-temperature resistant fiberglass insulators
• Electrically insulates the nozzle from the diffuser
• Heavy-duty crimp holds all three layers together

Product Highlights

The BERNARD 401-43-62 nozzle features a standard-duty, air-cooled, thread-on design with high-temperature resistant fiberglass insulators.

Product Information

Standard Information

• Brand: BERNARD
• Manufacturer Part Number: 401-43-62
• Country of Origin: United States

Technical Specifications

• Item: Nozzle
• Bore Diameter: 0.625 in
• Connection Type: Threaded
• Material: Copper
• Nozzle Shape: Tapered
• Outside Diameter: 0.938 in
• Overall Length: 2.88 in
• MFG: 401-43-62
• Style: Air-Cooled Bore Nozzle
• Manufacturer Part Number: 360-401-43-62
• Manufacturer: Bernard Welding
