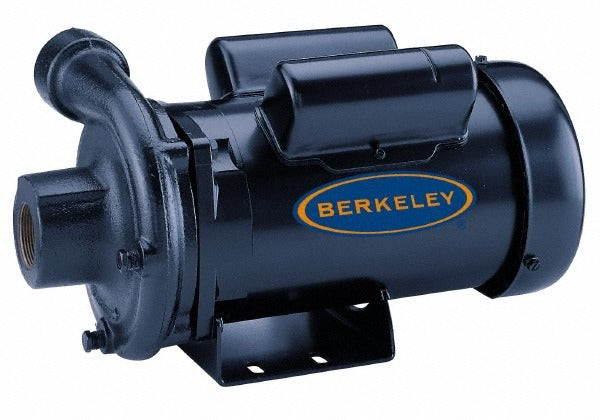

Berkeley S39537 Ac Straight Pump 2 Hp 230V Cast Iron

Product Description

The BERKELEY S39537 is an AC straight pump rated at 2 horsepower and 230 volts, single phase, designed for high-demand fluid transfer in commercial and industrial water systems. Built with a cast iron housing and brass impeller, it delivers durable, corrosion-resistant performance across a wide range of pumping applications. The totally enclosed fan-cooled (TEFC) motor protects against moisture and contaminants in demanding environments. With a maximum head pressure of 131 psi and a flow rate of 83 GPM at 20 feet of head, this pump handles high-volume water movement effectively. Licensed plumbers, mechanical contractors, and water system technicians are the primary installers.

The S39537 is suited for residential and light commercial water supply, irrigation, pressure boosting, and general fluid transfer applications. The 1-1/2 inch FPT inlet and 1-1/4 inch FPT outlet allow straightforward integration into standard piping systems. Operating on 60 Hz single-phase power at 230 volts, it is compatible with common single-phase electrical services found in agricultural, municipal, and commercial settings. The pump handles fluids up to 225 degrees F, extending its usefulness to hot water and process fluid applications.

Key Features

• 2 HP TEFC motor rated for single-phase, 230-volt, 60 Hz service
• Cast iron housing provides rugged, long-service durability in wet environments
• Brass impeller resists corrosion for extended service life
• 83 GPM flow at 20 feet of head; 41 GPM at 100 feet of head
• Maximum head pressure of 131 psi supports demanding pressure requirements
• FPT x FPT end connections for straightforward pipe integration
• Rated for fluids up to 225 degrees F

Compatibility

Designed as an OEM-style straight pump for single-phase AC water supply and fluid transfer systems requiring a 1-1/2 inch inlet and 1-1/4 inch outlet with FPT connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified mechanical contractor in accordance with applicable local plumbing codes and the IPC. Disconnect and lock out all electrical power before servicing the pump or motor. Ensure the supply circuit is properly sized for 230-volt, single-phase service and fused per NEC requirements. Verify piping supports are in place to prevent stress on the inlet and outlet connections before startup.
