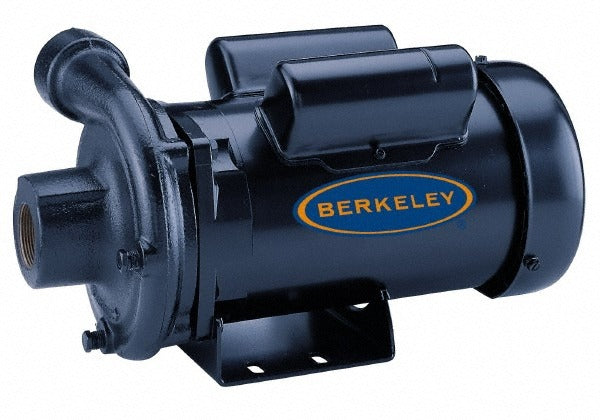

Berkeley S39524 Ac Straight Pump 2 Hp 230V Cast Iron

Product Description

The BERKELEY S39524 is a single-phase AC straight centrifugal pump rated at 2 horsepower and 230 volts, designed for demanding water transfer and circulation applications. The cast iron housing provides corrosion resistance and durability in wet service environments, while the Noryl impeller delivers reliable hydraulic performance across a wide flow range. Operating on 60 Hz single-phase power, the pump is driven by a TEFC motor for protection against moisture and contaminants. Maximum head pressure reaches 131 psi, making this unit suitable for moderate-to-high pressure pumping tasks. Licensed plumbers and pump technicians are the typical installers for this class of equipment.

The S39524 is suited for residential and light commercial water supply, irrigation, pressure boosting, and industrial fluid transfer systems where single-phase power is available. The 1-1/2 inch FPT inlet and 1-1/4 inch FPT outlet allow straightforward integration into standard threaded piping systems. Flow performance ranges from 83 GPM at 20 feet of head down to 22 GPM at 120 feet of head, covering a broad range of system curve requirements. The pump handles fluids up to 140 degrees F, extending its usefulness to hot water and process applications.

Key Features

• 2 HP TEFC motor rated for 230V single-phase, 60 Hz service
• Cast iron housing for durability in continuous wet service
• Noryl impeller resists corrosion and scaling in clean water service
• 1-1/2 inch FPT inlet and 1-1/4 inch FPT outlet for standard threaded pipe connections
• Maximum head pressure of 131 psi supports moderate-to-high pressure system designs
• Rated for fluid temperatures up to 140 degrees F

Compatibility

Designed as an OEM-style replacement or direct installation pump for single-phase AC water supply and circulation systems requiring a 2 HP straight centrifugal configuration with FPT x FPT end connections.

Installation Notes

Installation should be performed by a licensed plumber or qualified pump technician in accordance with applicable IPC and local plumbing codes. Shut off all supply power and isolate the system from pressure before making any piping or electrical connections. Ensure the pump is properly primed before startup to prevent dry-run damage to the impeller and seal. Do not exceed the rated fluid temperature of 140 degrees F or operate outside the published performance curve range.
