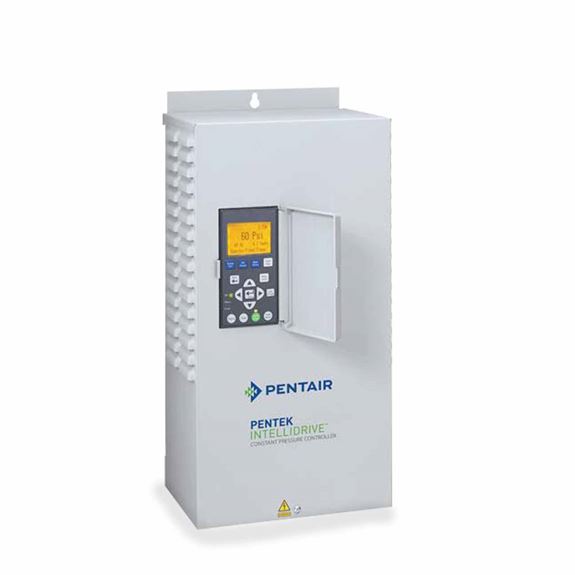

BERKELEY PID20 190 to 265V 0.5 to 2 HP NEMA 3R Variable Frequency Drive

Product Description

The Berkeley PID20 is a variable frequency drive designed for use with motors rated between 0.5 and 2 horsepower. This product operates with a voltage range of 190 to 265 volts. The drive features a compact design that allows for easy installation and efficient operation.

• Constant pressure control adjusts motor speeds to meet water demand
• Energy-efficient operation saves up to 20% compared to traditional systems
• LCD display for real-time monitoring and troubleshooting

Product Highlights

This product maintains a constant water pressure, extends pump life, and reduces energy consumption. It is suitable for various applications, making it ideal for residential and commercial use.

Product Information

Standard Information

• Brand: Berkeley
• Model Number: PID20

Technical Specifications

• Voltage Rating: 190 to 265 V ac
• Horsepower Rating: 0.5 to 2 HP
• Output Current Rating: 13.5 amp
• Frequency Rating: 60 Hz
• Maximum Operating Temperature: 50 deg F
• Minimum Operating Temperature: -20 deg F
• Width: 6.93 inches
• Height: 19 inches
• Length: 9.72 inches
• Weight: 22 lb.
