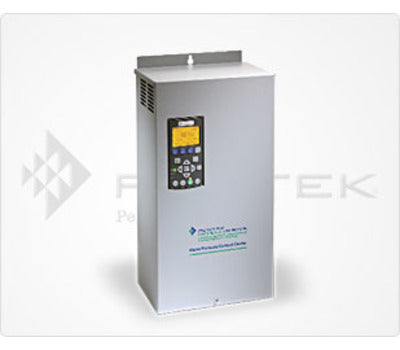

BERKELEY PID10 190 to 265V 0.5 to 1 HP NEMA 3R Variable Frequency Drive

Product Description

BERKELEY PID10 is a variable frequency drive designed to control motors efficiently. This device operates on a voltage range of one hundred ninety to two hundred sixty-five volts and supports one to three-phase motors. It is built to maintain consistent water pressure by adjusting the motor speed based on real-time water demands.

• Maintains constant water pressure throughout your system
• Extends pump life with soft start and coast-to-stop features
• Offers energy savings of up to twenty percent compared to traditional systems

Product Highlights

The Pentek Intellidrive provides LCD status indication for effective monitoring and an easy installation process.

Product Information

Standard Information

• Brand: BERKELEY
• Model Number: PID10

Technical Specifications

• Voltage Rating: 190 to 265 V ac
• Frequency Rating: 60 Hz
• Horsepower Rating: 0.5 to 1 HP
• Output Current Rating: 9.5 amp
• Maximum Operating Temperature: 50 deg F
• Minimum Operating Temperature: -20 deg F
• Width: 6.93 inches
• Height: 19 inches
• Length: 9.72 inches
• Weight: 22 lb.
• Catalog Number: PID10
• Driver Type: Variable Frequency
• For Use With: 1 to 3-Phase Motor
• UPC: 054128008677
