Bell Outdoor 5103-0 1-gang Weatherproof Gfci Cover Gray

Product Description

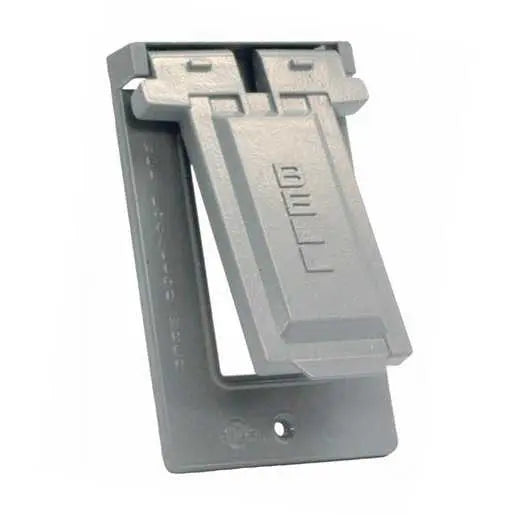

The BELL OUTDOOR 5103-0 is a 1-gang weatherproof flip cover designed for vertical-mount GFCI receptacle installations in exposed or outdoor locations. Constructed from aluminum with a metallic finish in gray, this cover uses a flip/snap closure to protect the receptacle from moisture, dust, and environmental exposure. It carries a NEMA 3R rating, indicating suitability for outdoor use where rain, sleet, and ice may be present. UL Listed and NEC compliant, the 5103-0 is a standard choice for licensed electricians installing or servicing outdoor outlets, wet-location panels, and similar applications requiring code-compliant protection.

This cover is intended for vertical device-mount configurations in single-gang boxes housing GFCI receptacles. Typical installations include exterior walls of residential and light commercial buildings, covered patios, garages, and other locations subject to outdoor environmental conditions. The aluminum construction and NEMA 3R rating make it appropriate for damp and wet location use as defined by the NEC. The gray color provides a neutral appearance suited to most standard outdoor installation environments.

Key Features

• NEMA 3R rated for outdoor and wet location installations
• Aluminum metallic construction for durability in exposed environments
• Flip/snap cover closure protects GFCI receptacle from moisture and debris
• Vertical device-mount orientation for single-gang boxes
• UL Listed and NEC compliant
• EU RoHS compliant materials

Compatibility

Designed as an OEM-style replacement or new-installation cover for single-gang vertical-mount GFCI receptacles in outdoor and wet-location applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for wet and damp locations. De-energize the circuit at the breaker panel before removing any existing cover or servicing the receptacle. Verify the mounting box orientation is vertical before securing the cover to ensure proper flip-closure alignment. Seal around the box and cover as required by local code to maintain the integrity of the weatherproof installation.

Technical Specifications

• Cover Type: Flip/Snap
• Number of Gangs: 1-Gang
• Mounting Method: Vertical; Device Mount
• Material: Aluminum
• Color: Gray
• NEMA Rating: NEMA 3R
• Height: 4.563 inches
• Width: 2.813 inches
• Depth: 0.797 inches
• Package Weight: 0.246 pounds
• Certifications: UL Listed, NEC Compliant, EU RoHS Compliant

Standard Information

• Brand: BELL OUTDOOR
• Manufacturer Part Number: 5103-0
