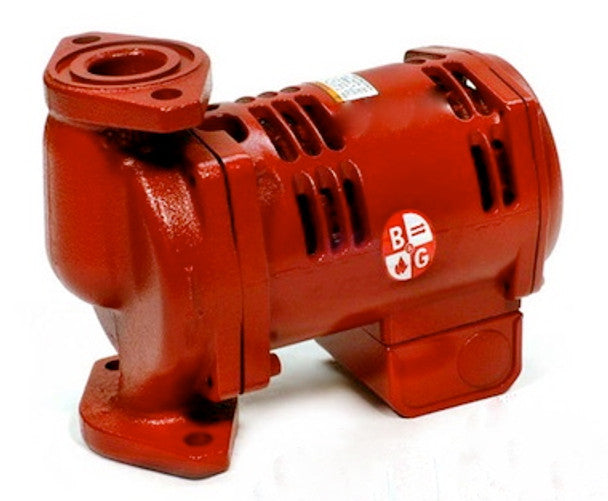

BELL & GOSSETT PL-75(1BL034) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator, 1/6 HP, 3400 RPM, 115 Volts, 2 NPT Flange Size

Product Description

The BELL & GOSSETT PL-75(1BL034) is a Series PL Cast Iron Close Coupled Booster Pump and Inline Circulator. It features a one-sixth horsepower motor that operates at three thousand four hundred RPM and uses one hundred fifteen volts. The pump is designed to handle dirty water conditions effectively.

• Permanently lubricated for maintenance-free operation
• Quiet and reliable performance
• Rugged design suitable for various applications

Product Highlights

This pump offers an efficient solution for hydronic, radiant, and geothermal heating and cooling systems.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Model: PL-75(1BL034)

Technical Specifications

• Power: 1/6 HP
• RPM: 3400
• Voltage: 115
• Full Load Amps: 2.1
• Max Operating Temperature: 225°F
• Max Working Pressure: 150 psig
• Flange Size: 2 NPT
• Pump Body: Cast iron
• Approx Shipping Weight: 18.5 lbs
• Dimensions: 9-15/16 inches (A), 8-1/2 inches (B), 7-3/8 inches (C), 5-3/16 inches (D), 4-5/8 inches (E)
