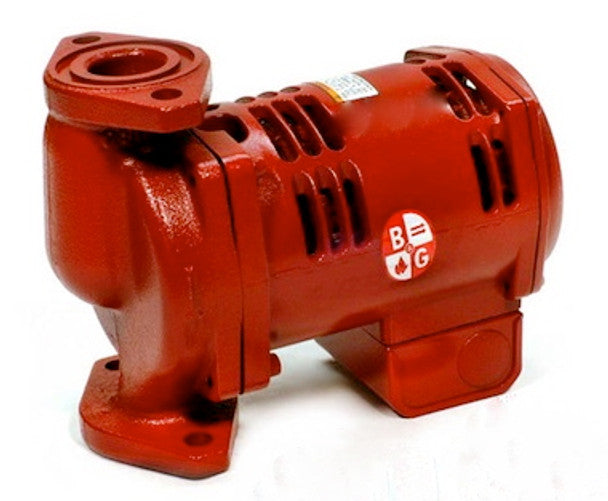

BELL & GOSSETT PL-50(1BL016) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 1/6 HP 3300 RPM

Product Description

The BELL & GOSSETT PL-50(1BL016) is a series PL cast iron close coupled booster pump and inline circulator. This product operates at 1/6 HP and reaches a speed of 3300 RPM. Ideal for hydronic, radiant, and geothermal heating and cooling systems, it is designed to handle dirty water conditions effectively.

• Permanently lubricated for maintenance-free use.
• Compact design suited for various applications.
• Efficient performance, 25% more efficient than wet rotor pumps.

Product Highlights

Designed for quiet operation, the PL-50(1BL016) features a rugged build that withstands demanding conditions.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Model: PL-50(1BL016)

Technical Specifications

• Power: 1/6 HP
• RPM: 3300
• Flange Sizes: 1, 1-1/4, 1-1/2 NPT
• F.L. Amps: 1.8
• Voltage: 115
• Max Operating Temperature: 225°F
• Max Working Pressure: 150 psig
• Approx Shipping Weight: 14.5 lbs
