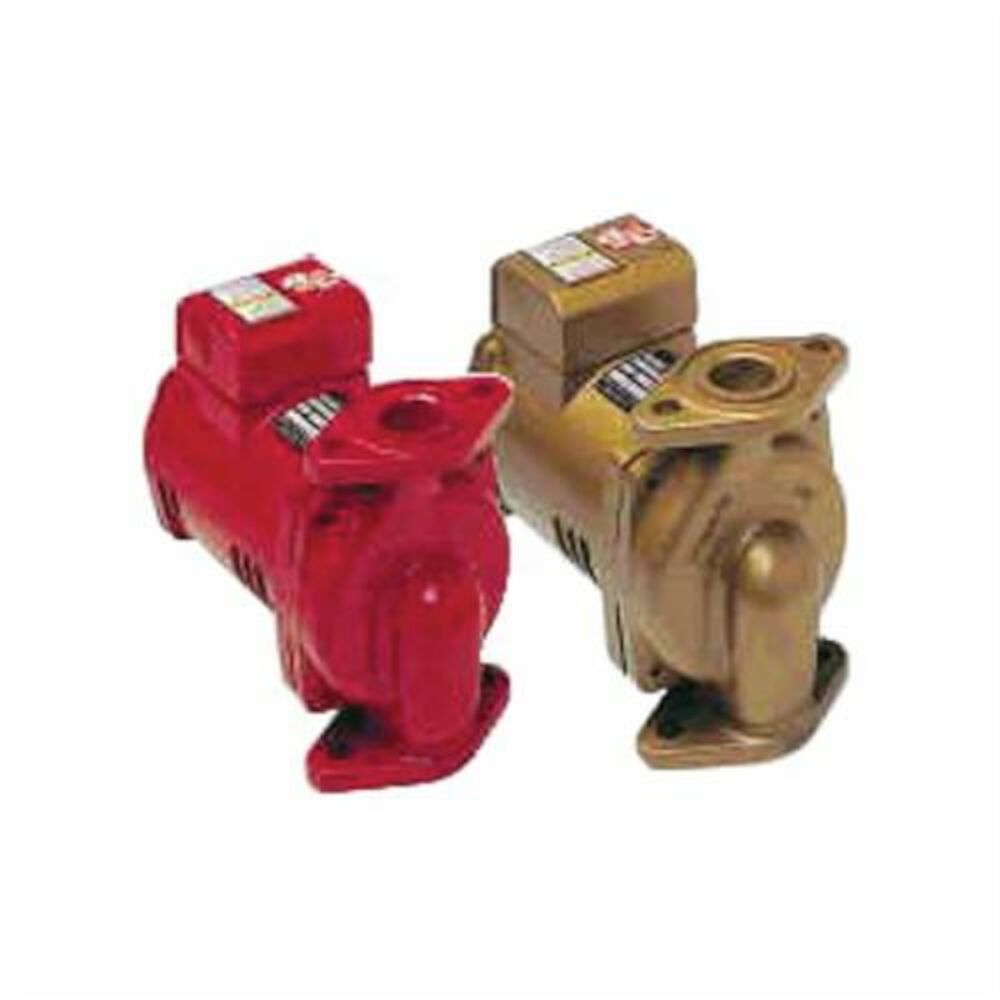

BELL & GOSSETT PL-45(1BL002) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 1/6 HP 3300 RPM

Product Description

Introducing the BELL & GOSSETT PL-45(1BL002). This Booster Pump is designed for applications requiring reliable and efficient operation. It operates at 1/6 HP and delivers a speed of 3300 RPM, making it suitable for various plumbing needs.

• Permanently lubricated for maintenance-free performance.
• Handles dirty water conditions effectively.
• Flange sizes include 1, 1-1/4, and 1-1/2 inch NPT.

Product Highlights

This product is ideal for hydronic, radiant, and geothermal heating systems.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Model: PL-45(1BL002)

Technical Specifications

• Power: 1/6 HP
• Speed: 3300 RPM
• Voltage: 115 Volts
• F.L. Amps: 2.1
• Pump Body: Cast iron
• Max Operating Temperature: 225°F
• Max Working Pressure: 150 psig
• Approx Shipping Weight: 14.5 lbs
• Dimensions: 9-1/8 inches (A), 8-1/2 inches (B), 7-1/4 inches (C), 4-5/8 inches (D), 4-1/2 inches (E)
