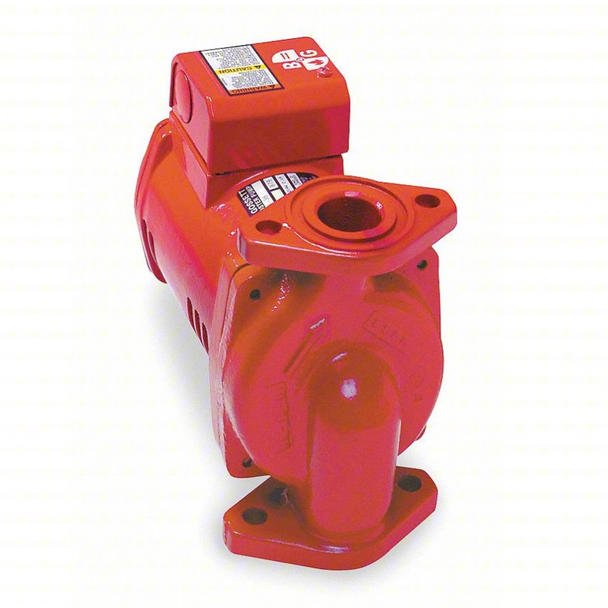

BELL & GOSSETT PL-36(1BL001) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 1/6 HP 3300 RPM

Product Description

The BELL & GOSSETT PL-36(1BL001) is a cast iron close-coupled booster pump and inline circulator. It features a 1/6 horsepower motor and operates at a speed of 3300 RPM. This pump is designed to handle dirty water conditions efficiently.

• Permanently lubricated for maintenance-free operation
• Quiet and reliable performance for heating and cooling systems
• Rugged and compact design ideal for various applications

Product Highlights

Ideal for hydronic, radiant, and geothermal heating and cooling systems, providing reliable circulation of water.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Part #: 574606

Technical Specifications

• HP: 1/6
• RPM: 3300
• Voltage: 115
• F.L. Amps: 2.1
• Max Operating Temperature: 225°F
• Max Working Pressure: 150 psig
• Flange Size Inches - NPT: 3/4, 1, 1-1/4, 1-1/2
• Pump Body: Cast iron
• Approx Shipping Weight: 13.1 lbs
• Dimensions: A: 8-5/8 in, B: 6-3/8 in, C: 7-1/8 in, D: 4-3/16 in, E: 4-3/8 in
