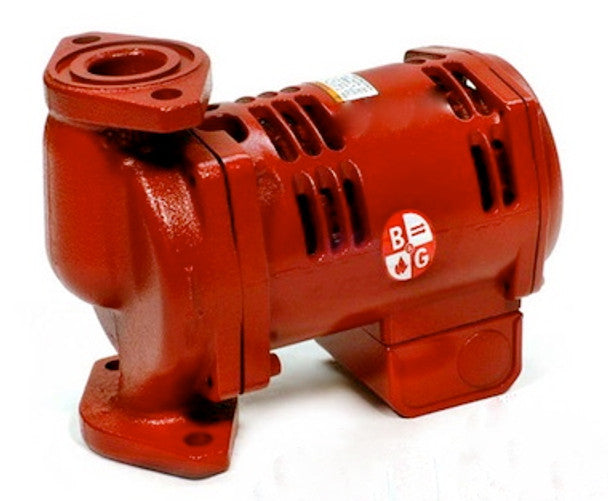

BELL & GOSSETT PL-30(1BL012) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 1/12 HP

Product Description

The BELL & GOSSETT PL-30(1BL012) is a Series PL Cast Iron Close Coupled Booster Pump and Inline Circulator with one-twelfth horsepower. It operates at two thousand six hundred fifty RPM and requires one hundred fifteen volts. This pump is designed for efficient operation in hydronic, radiant, and geothermal heating and cooling systems.

• Permanently lubricated for maintenance-free use
• Quiet operation suitable for various applications
• Rugged design for durability

Product Highlights

The BELL & GOSSETT PL-30(1BL012) offers a superior alternative to wet rotor pumps, efficiently handling dirty water conditions and providing a compact solution for various plumbing needs.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Part Number: 574612

Technical Specifications

• Model Number: PL-30
• HP: 1/12
• RPM: 2650
• Voltage: 115
• F.L. Amps: 1.4
• Max Operating Temperature: 225 degrees Fahrenheit
• Max Working Pressure: 150 psig
• Pump Body: Cast iron
• Flange Size (NPT): 3/4, 1, 1-1/4, 1-1/2 inches
• Approx Shipping Weight: 11.6 lbs
• Dimension A: 8-5/8 inches
• Dimension B: 6-3/8 inches
• Dimension C: 7-1/8 inches
• Dimension D: 4-3/16 inches
• Dimension E: 4-3/8 inches
