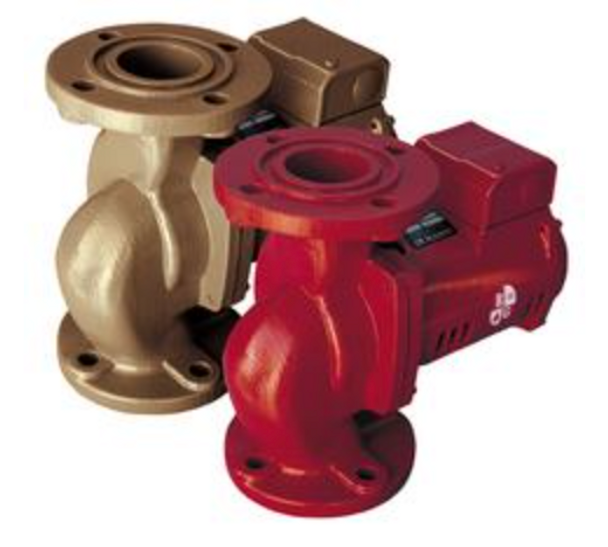

Bell & Gossett PL-130/3(1BL070) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 2/5 HP

Product Description

The Bell & Gossett PL-130/3(1BL070) is a series PL cast iron close coupled booster pump and inline circulator designed for efficient operation. This model operates at 2/5 horsepower and reaches speeds of 3200 RPM. It is a reliable choice for plumbing applications requiring strong performance and durability.

• Permanently lubricated and maintenance-free
• Handles dirty water conditions efficiently
• Compact design for various installation needs

Product Highlights

This booster pump offers quiet operation, making it ideal for hydronic, radiant, and geothermal heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Model Number: PL-130/3(1BL070)

Technical Specifications

• Horsepower: 2/5 HP
• RPM: 3200
• Voltage: 115 Volts
• F.L. Amps: 4.8
• Flange Size: 2-1/2 & 3 NPT
• Max Operating Temperature: 225 °F
• Max Working Pressure: 150 psig
• Pump Body Material: Cast iron
• Dimensions: A - 10-3/4 in, B - 8-1/2 in, C - 8-1/4 in, D - 6 in, E - 5-1/8 in
• Approximate Shipping Weight: 27 lbs
