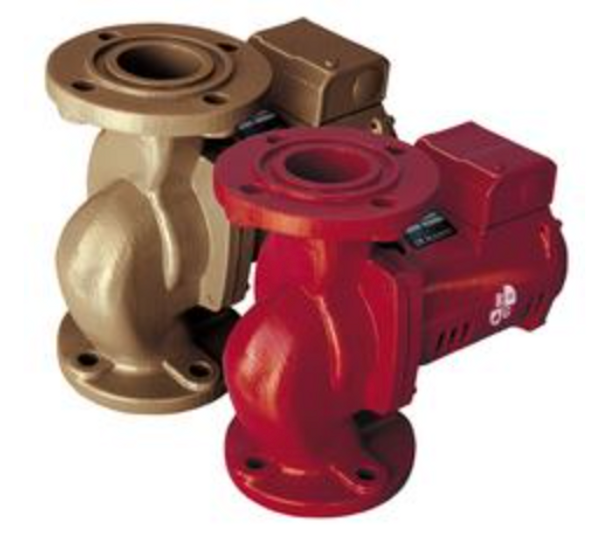

BELL & GOSSETT PL-130/2(1BL063) Series PL Cast Iron Close Coupled Booster Pump / Inline Circulator 2/5 HP Replacement MPN

Product Description

The BELL & GOSSETT PL-130/2(1BL063) Series PL Cast Iron Close Coupled Booster Pump is designed for water transfer and boosting applications. This pump operates at two-fifths horsepower with a speed of three thousand two hundred revolutions per minute. It runs on one hundred fifteen volts and has a flanged size of two inches NPT. The rugged compact design enhances reliability and suitability for various conditions.

• Efficient for handling dirty water conditions.
• Maintenance-free and permanently lubricated.
• Quiet operation ideal for heating and cooling systems.

Product Highlights

This booster pump is excellent for hydronic, radiant, and geothermal heating and cooling systems. Its close-coupled design provides superior efficiency compared to wet rotor pumps.

Product Information

Standard Information

• Model: PL-130/2(1BL063)
• Manufacturer: BELL & GOSSETT

Technical Specifications

• HP: 2/5
• RPM: 3200
• Voltage: 115
• F.L. Amps: 4.8
• Flange Size Inches - NPT: 2
• Approx Shipping Weight: 22 lbs
• Max Operating Temperature: 225 degrees F
• Max Working Pressure: 150 psig
• Pump Body Material: Cast iron
• Dimensions: A - 10 3/4 inches, B - 8 1/2 inches, C - 8 1/4 inches, D - 5 3/16 inches, E - 5 1/8 inches
