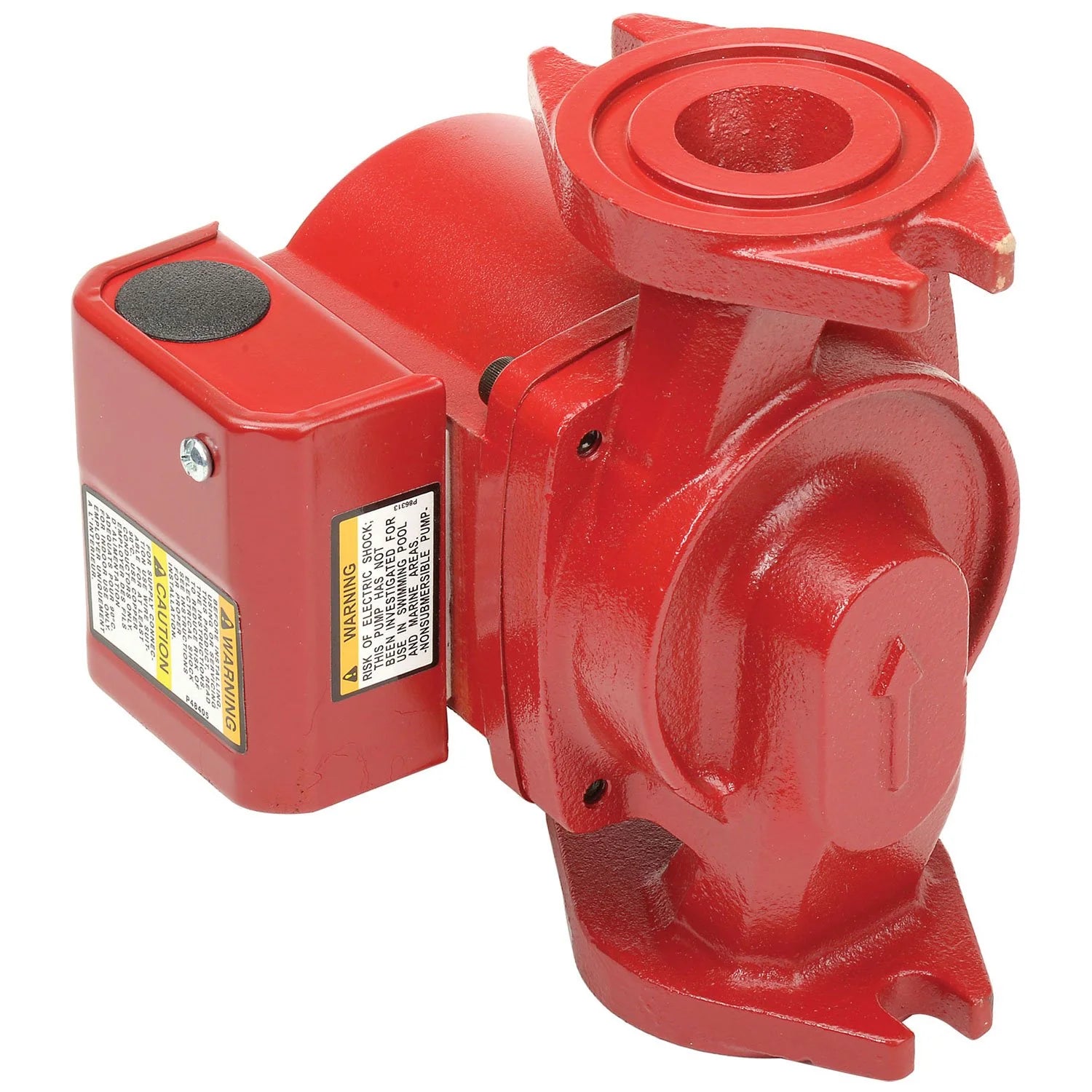

Bell & Gossett NRF-22 Wet Rotor Circulator, Single Speed, Flange Connection, 115V, 92W, Cast Iron

Product Description

The Bell & Gossett NRF-22 Wet Rotor Circulator with MPN NRF-22 is a reliable and efficient solution for your water circulation needs. This single-speed pump is designed for both residential and light commercial use.

• Single-speed operation
• Flange connection
• 92-watt power consumption

Product Highlights

The Bell & Gossett NRF-22 offers optimal performance with minimal maintenance. Crafted with a cast iron housing and a ceramic impeller, it ensures durability and efficiency. The pump boasts a maximum flow rate of 20.6 gallons per minute at 1 foot of head and is capable of operating at pressures up to 150 psi and temperatures up to 240 degrees Fahrenheit.

Product Information

Standard Information

• Brand: Bell & Gossett
• Item Number: NRF-22
• Connection Style: Flanged

Technical Specifications

• Power Source: AC/DC
• Material: Cast Iron
• HP: 1/25
• Voltage: 115V
• Phase: 1
• Max Operating Pressure: 150 psi
• Max Temperature: 240 Degrees F
• Flow Rate: 20.6 GPM at 1 ft
• Impeller Material: Ceramic
• Shaft Material: No Mechanical Seal
• Weight: 9 lbs
• Package Dimensions: 6.93 x 6.61 x 5.87 inches
