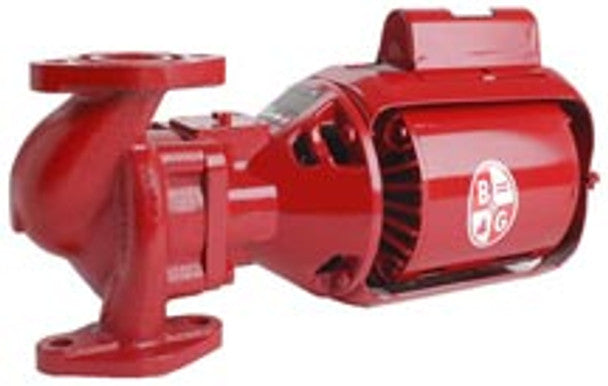

BELL & GOSSETT HVNFI(102210) Series HV Circulator Oil Lubricated 115 Volts 1/12 HP 5735

Product Description

The Bell & Gossett HVNFI(102210) is a series HV circulator designed for efficient heating and cooling systems. This oil lubricated, three-piece pump operates at one hundred fifteen volts with a quarter horsepower motor. It is suitable for various plumbing applications and provides reliable performance at a maximum speed of one thousand seven hundred twenty-five RPM.

• Oil lubricated design for optimal functionality.
• Suitable for heating and cooling applications.
• Constructed with a cast iron pump body for durability.

Product Highlights

Ideal for residential and commercial systems, this circulator features built-in overload protection for enhanced safety during operation.

Product Information

Standard Information

• Model: HV NFI
• Manufacturer: Bell & Gossett

Technical Specifications

• Horsepower: 1/12
• Voltage: 115 with built-in overload protection
• Speed: 1725 RPM
• F L Amps: 1.9
• Max Working Pressure: 125 psig
• Max Operating Temperature (Standard Seal): 225 °F
• Max Operating Temperature (Special Seal): 250 °F
• Flange Size Inches - NPT: 1, 1-1/4, 1-1/2
• Pump Body: Cast iron
• Shaft: Carbon Steel, Heat Treated
• Approx Shipping Weight: 28 lbs
