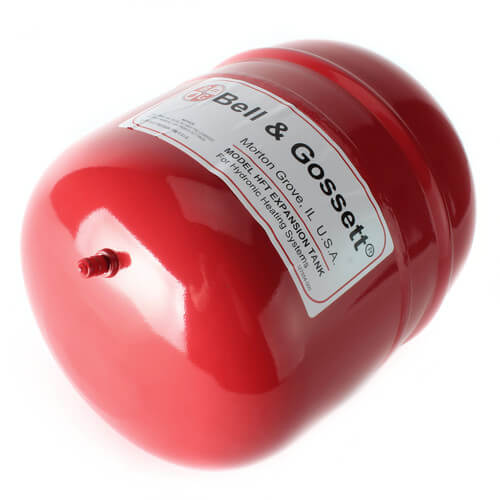

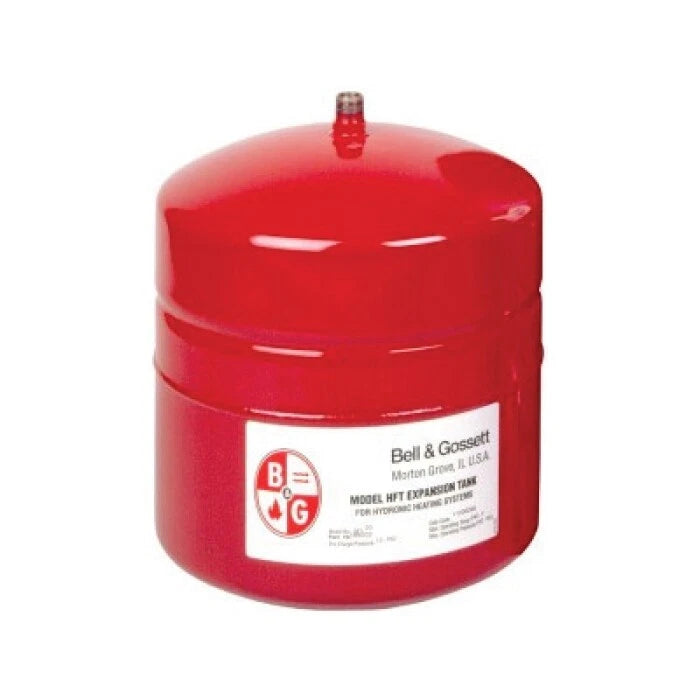

BELL & GOSSETT HFT90 Bell & Gossett Diaphragm Expansion Tank 14 Gallon

Product Description

The Bell & Gossett HFT90 is a diaphragm expansion tank designed for HVAC applications in residential and light commercial settings. This tank has a volume of fourteen gallons, providing adequate capacity for various systems. It is built from durable carbon steel to withstand demanding environments. The maximum operating pressure for this tank is one hundred pounds per square inch, ensuring reliability under pressure. The connection size for this model is one-half inch NPT male with a factory pre-charged pressure of twelve psi.

• Tank volume of fourteen gallons
• Maximum working pressure of one hundred psi
• Connection size: one-half inch NPT male

Product Highlights

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: HFT90

Technical Specifications

• Series: HFT
• Tank Type: Diaphragm
• Acceptance Volume: 11.3 Gallons
• Tank Installation Position: Horizontal or Vertical
• Construction: Carbon Steel
• Maximum Operating Temperature: 240 °F
• Weight: 23 lbs
• Height: 21 inches
• Diameter: 15-3/8 inches
• Diaphragm Material: Heavy Duty Butyl Rubber
• Precharged PSI: 12 psi
• Connection Type: Threaded
• Thread Type: Male
