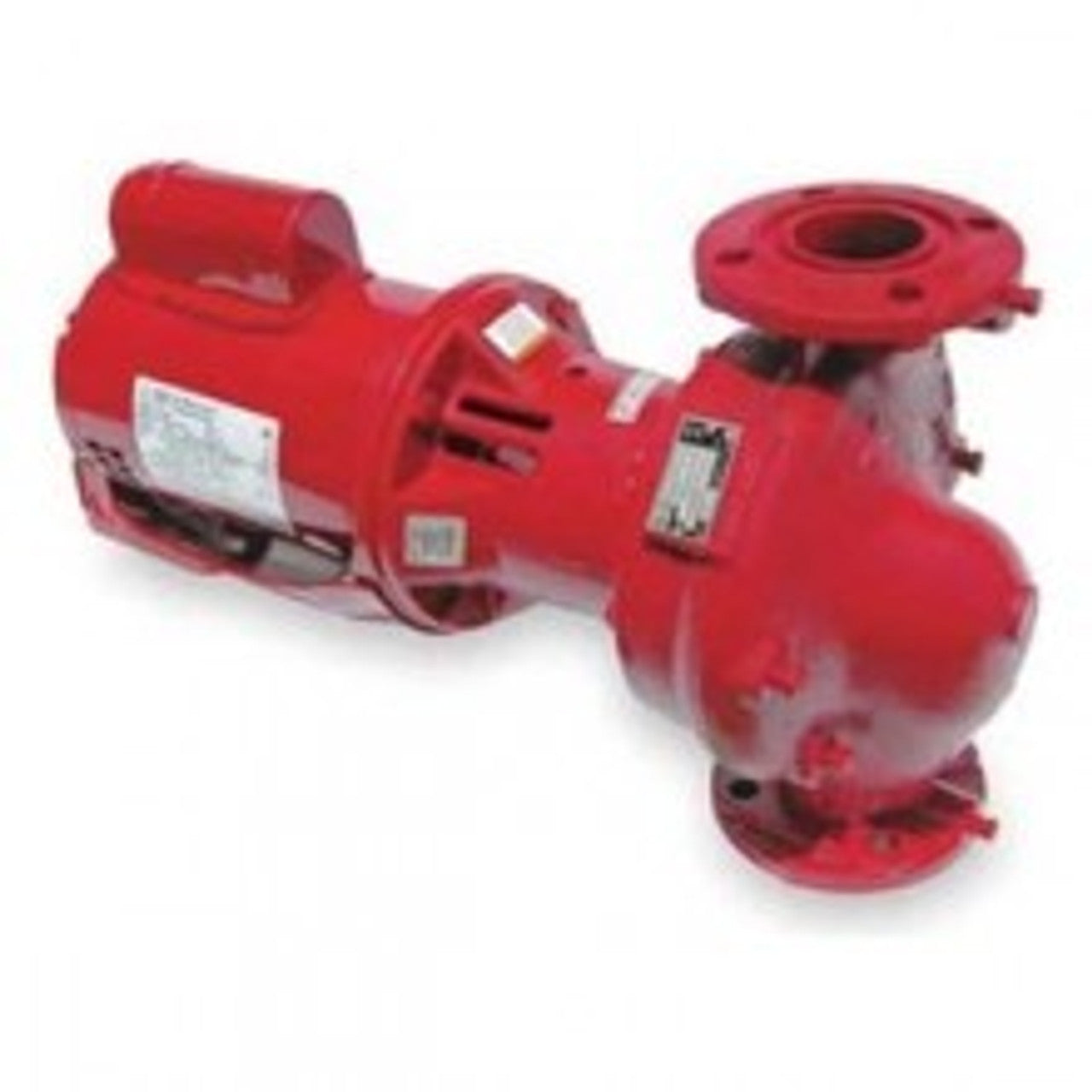

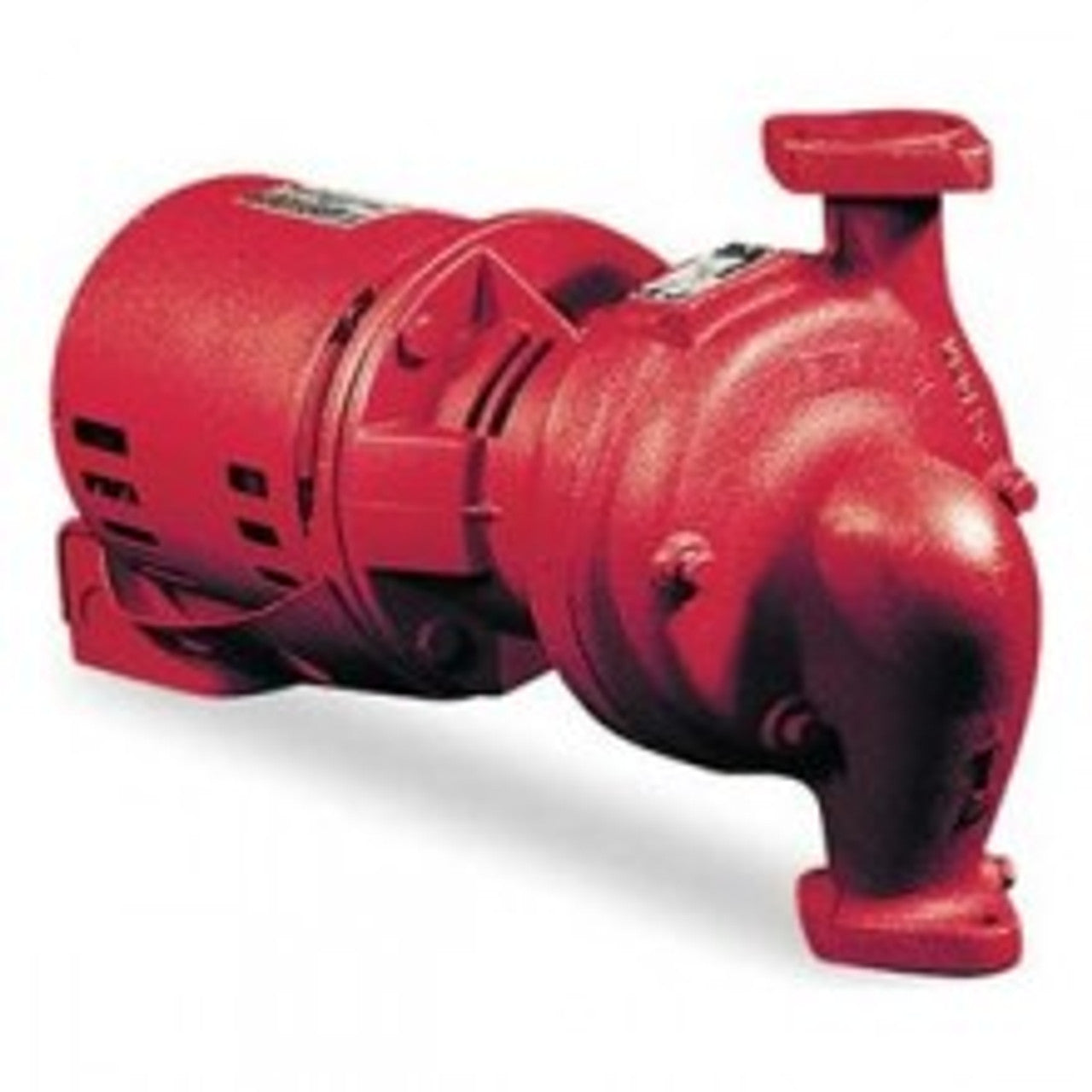

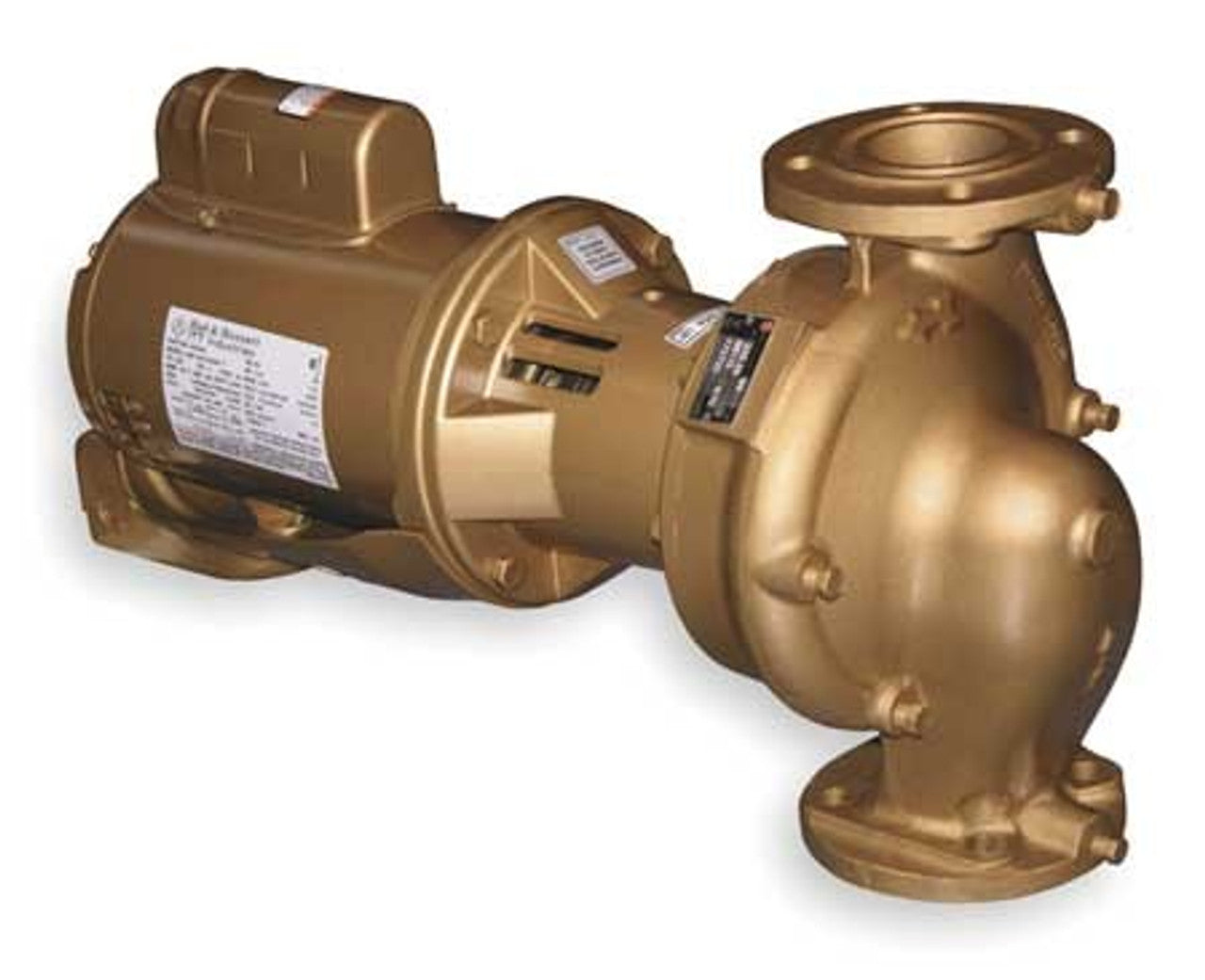

BELL & GOSSETT HEF-6 BELL & GOSSETT 1/6 HP, 2 NFI Circulator Pump HEF-6

Product Description

The Bell & Gossett HEF-6 is a circulator pump designed for hydronic heating and domestic hot water circulation. This pump features a three-piece, oil-lubricated design that allows for easy maintenance and service. The assembly is easily repairable or replaceable, providing convenience for technicians.

• Suitable for hydronic heating and domestic hot water circulation.
• Three-piece, oil-lubricated design for easy maintenance.
• Minimizes system-related noise with quiet operation.

Product Highlights

The Bell & Gossett HEF-6 combines versatility and durability, making it ideal for circulation in various heating systems.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: HEF-6

Technical Specifications

• Horse Power: 1/6 HP
• Voltage: 115V
• Max Pressure: 125 psi (8.6 bar)
• Max Temp (Standard Seal): 225°F (107°C) continuous
• Max Temp (Special Seals): 250°F (121°C) continuous
• Connection Size: 2 inches
• Flow Range: 0-75 GPM
• Max Flow: 75 GPM
• Max Head: 10 ft
• RPM: 1725
• Phase: 1
