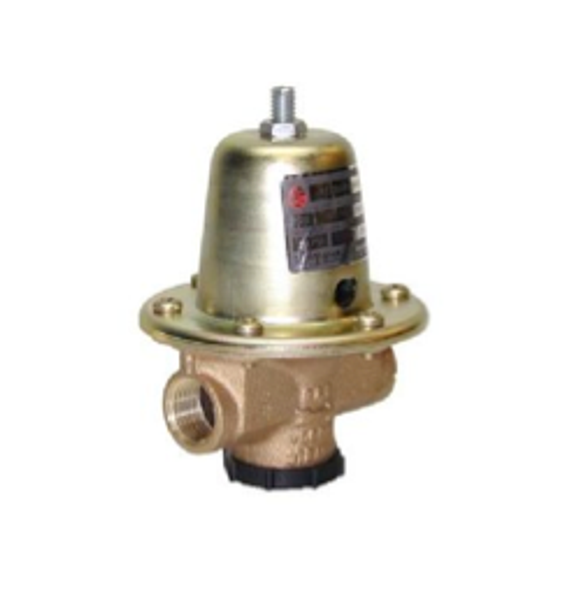

BELL & GOSSETT B-38(110190) Pressure Reducing Valve, Iron Body, 1/2 NPT

Product Description

The BELL & GOSSETT B-38(110190) is a reliable pressure reducing valve designed for plumbing systems. This valve features a robust iron body and a size of one half inch NPT to effectively manage water pressure in residential and commercial applications.

• Adjustable range of ten to twenty-five psi
• Factory setting at twelve psi for optimal performance
• Flow rate between five and a half to six gallons per minute

Product Highlights

This pressure reducing valve helps maintain stable water pressure, ensuring the longevity of plumbing fixtures.

Product Information

Standard Information

• Manufacturer: BELL & GOSSETT
• Part Number: 575033

Technical Specifications

• Model Number: B-38
• Size: 1/2 NPT
• Body Material: Brass
• Adjustable Range Psig: 10-25
• Factory Setting Psig: 12
• Flow Rate: 5-1/2 - 6 GPM
• Max Working Pressure: 125 psig
• Operating Temperature: 225 °F
• Approx. Shipping Weight: 1-3/4 lbs
• Dimensions A (Inches): 3-1/16
• Dimensions B (Inches): 4-7/8
• Dimensions C (Inches): 3-3/4
• Dimensions D (Inches): 1-1/8
