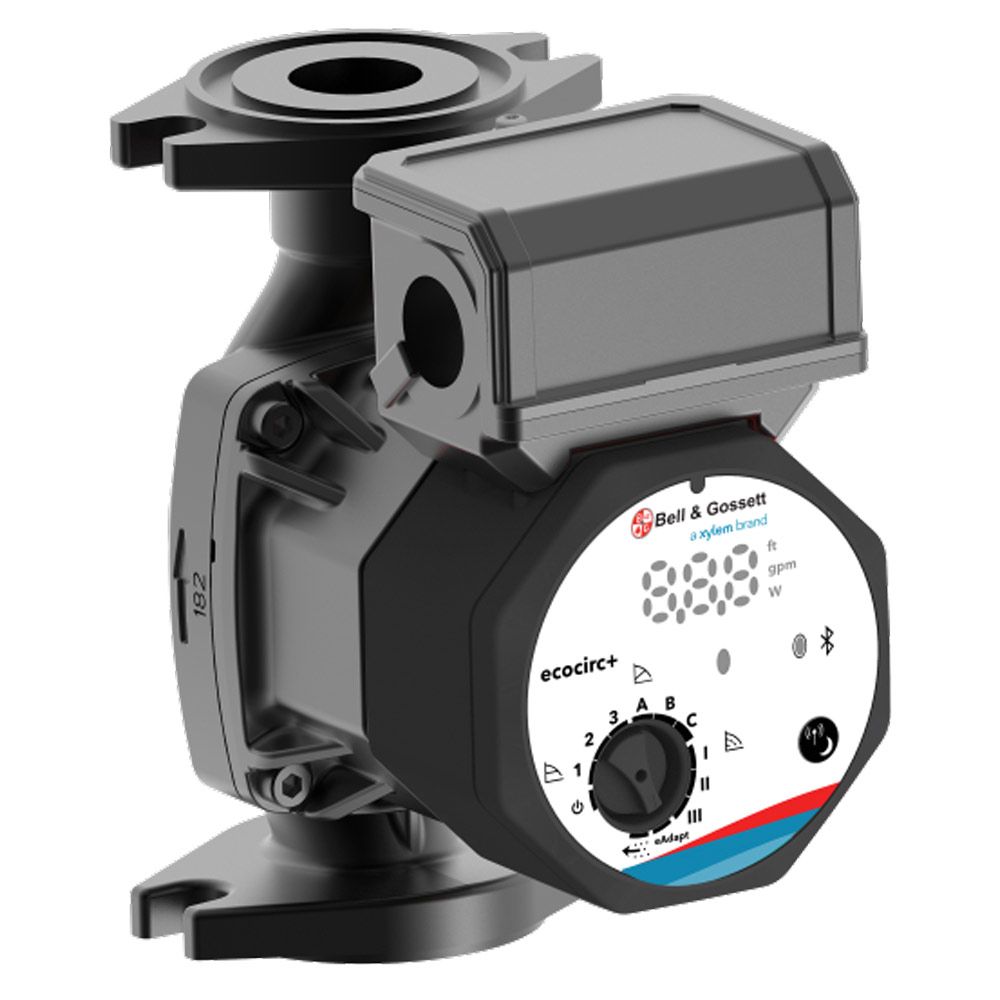

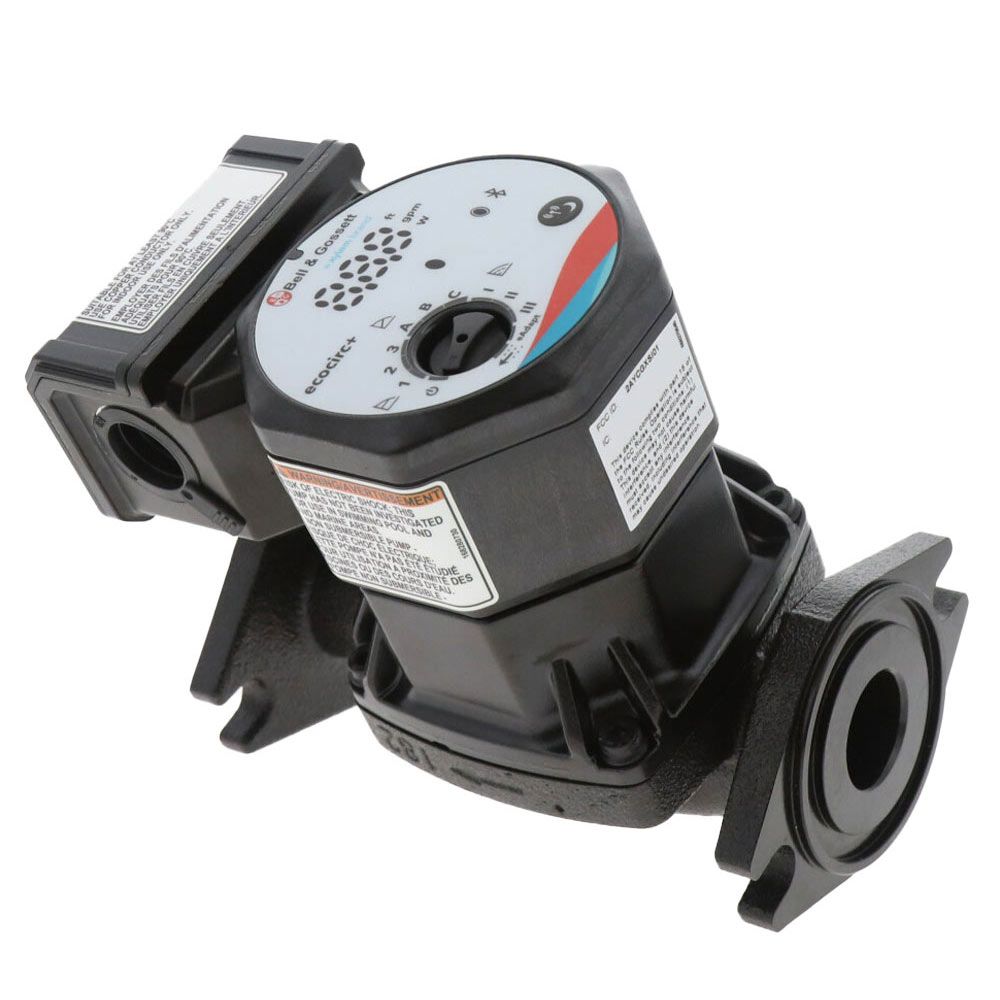

Bell & Gossett 60B0B1003 ecocirc+ 20-18 cast iron flanged

Product Description

The Bell & Gossett 60B0B1003 is an ecocirc+ 20-18 cast iron flanged circulator pump. This model is designed for efficient heating and cooling applications. It features advanced ECM technology, providing effective performance while reducing energy use. The pump allows for wireless control via Bluetooth, making it user-friendly for various installations.

• Variable speed control for energy savings
• Flanged connections for easy installation
• Compatible with multiple heating systems

Product Highlights

This circulator pump supports different operating modes, including proportional pressure and constant pressure, making it versatile for any application. Its compact design fits well in tight spaces.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Model: ecocirc+ 20-18 flanged

Technical Specifications

• MPN: 60B0B1003
• Pump Type: Circulator
• Power: 70 Watts
• Max Head: 20 feet
• Max Flow Rate: 18 GPM
• Voltage: 115V
• Motor Phase: 1 Ph
• Motor Hertz: 50/60 Hz
• Max Operating Temperature: 230°F
• Weight: 6.39 lbs
• Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
• Flanges Included: No
