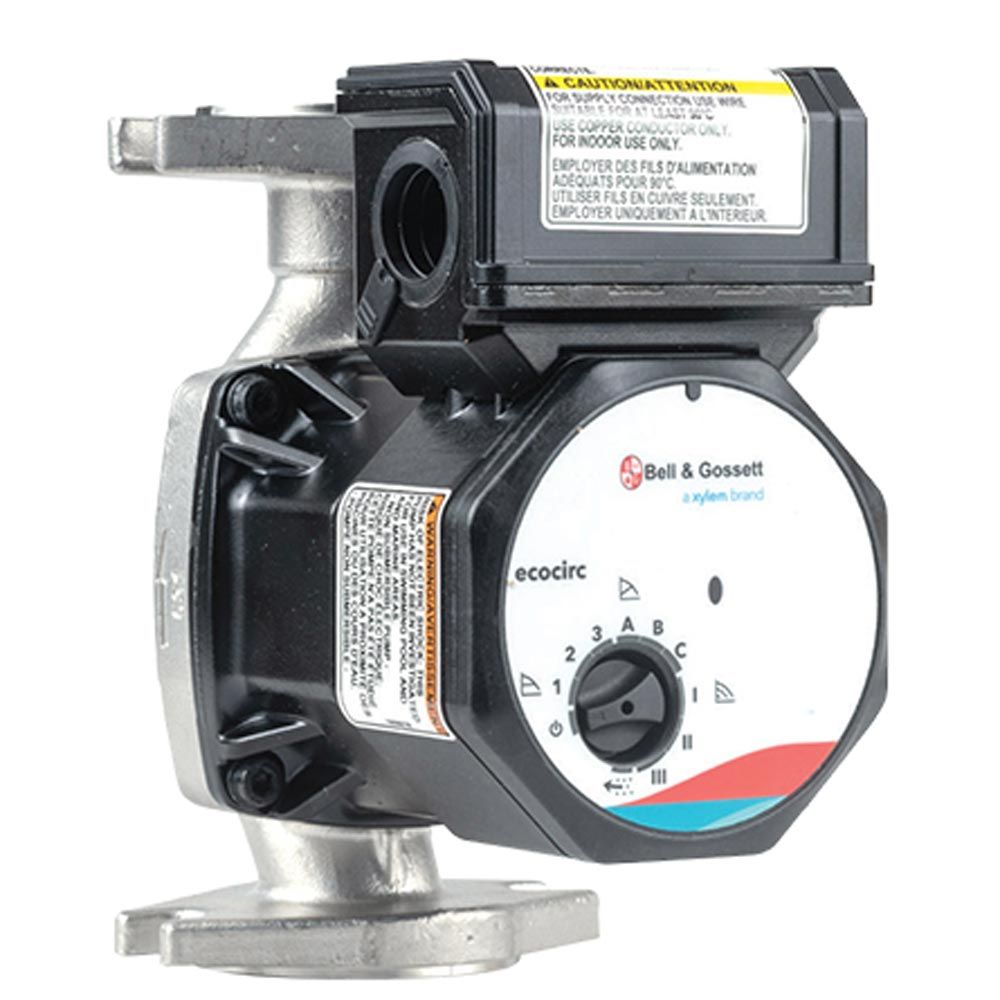

Bell & Gossett 60B0B1001 ecocirc 20-18 Stainless Steel Flanged Circulator ECM

Product Description

The Bell & Gossett 60B0B1001 ecocirc 20-18 is a high-efficiency, stainless steel flanged circulator pump featuring an Electronically Commutated Motor (ECM). Specifically designed for a wide range of heating, cooling, and potable water applications, this wet rotor circulator ensures optimal performance and energy efficiency.

• Maximum head of 20 feet and flow rate of 18 GPM for robust operation.
• Three operational modes: proportional pressure, constant pressure, or adjustable speed control to suit various system requirements.
• Integrated system protection and automatic air purge to enhance reliability and maintenance ease.

Product Highlights

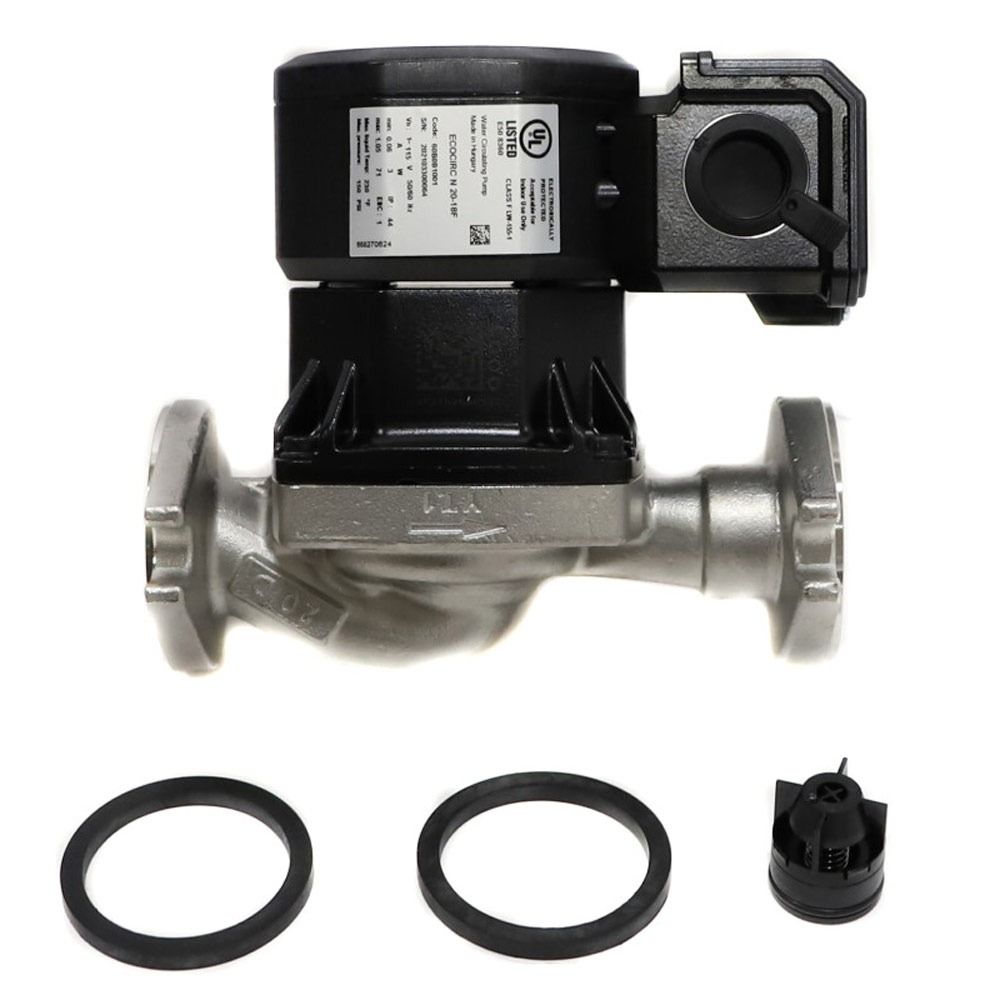

Equipped with multicolor LED display and a simple turn knob for ease of operation. The inclusion of a check valve and an insulation shell enhances functionality and installation flexibility.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 60B0B1001

Technical Specifications

• Power: 70W
• Fluid Temperature Range: 14 to 230 degrees Fahrenheit
• Connection Size: 3/4 inch, 1 inch, 1-1/4 inches, and 1-1/2 inches
• Motor Specifications: 115V, variable speed, 50/60 Hz, single phase
• Pump Type: Circulator, suitable for potable water systems
• Material: Stainless Steel
