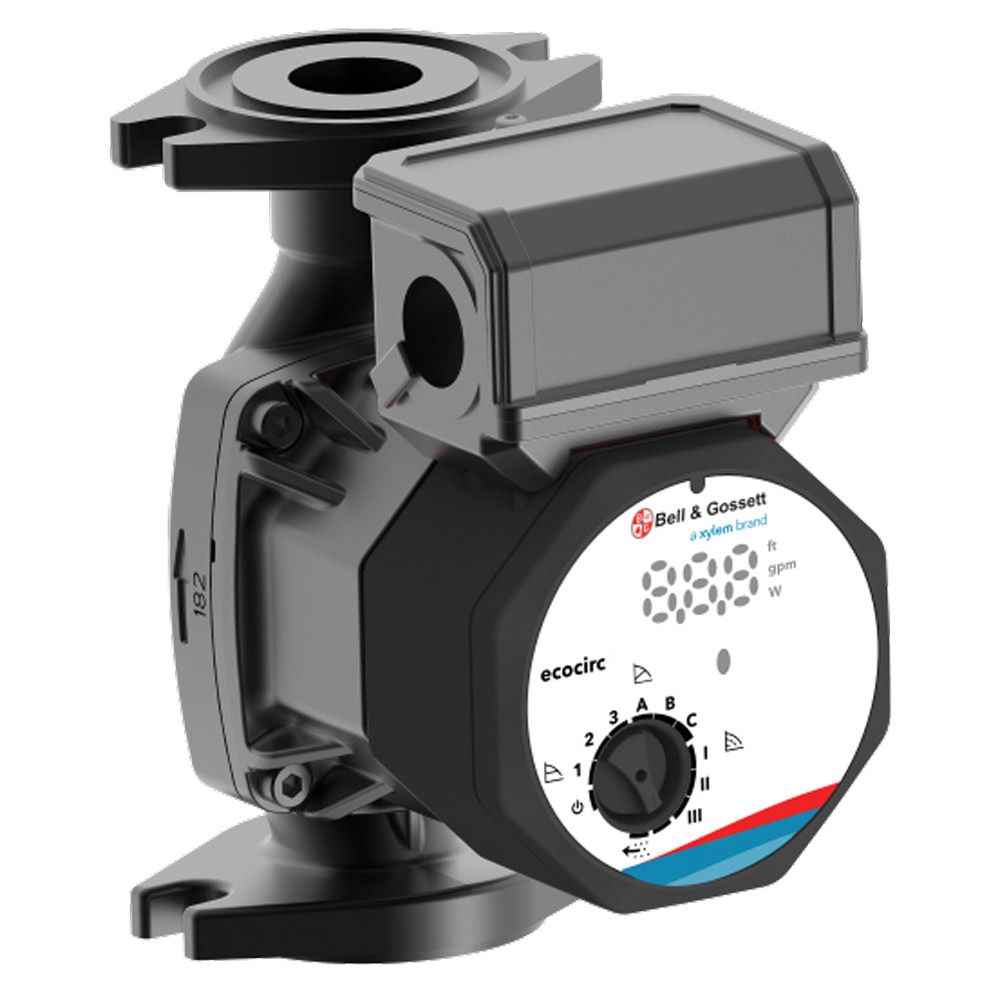

Bell & Gossett 60B0B1000 Ecocirc 20-18 Cast Iron Flanged

Product Description

The Bell & Gossett 60B0B1000 is an Ecocirc 20-18 cast iron flanged circulator pump designed for hydronic heating and cooling systems. With a maximum head of twenty feet or a flow rate of eighteen gallons per minute, this pump meets demanding performance requirements. It utilizes a 70W ECM motor which provides variable speed control, leading to energy savings when adapting to changing system needs.

• Maximum head of 20 feet or 18 GPM
• 70W power with 3 operating modes
• Automatic air purge feature

Product Highlights

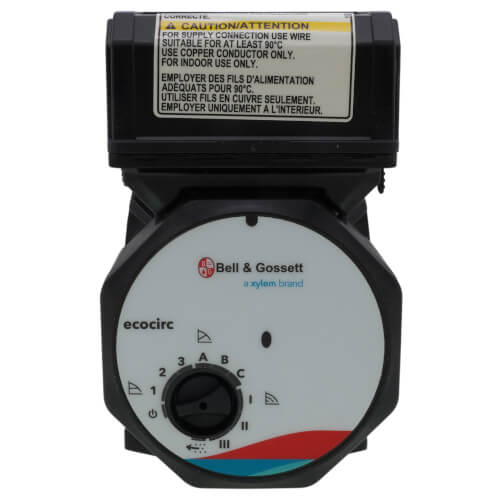

This pump includes a CircGuard system for integrated protection, a user-friendly knob, and a multi-color LED display for easy operation.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 60B0B1000

Technical Specifications

• Fluid Temperature: 14F to 230F
• Max Working Pressure: 145 psi
• Pump Type: Circulator
• Pump Construction: Cast Iron
• Pump Connection Size: 3/4, 1, 1-1/4, 1-1/2 inches
• Motor Phase: 1 Ph
• Motor Voltage: 115V
• Motor Hertz: 50/60 Hz
• Weight: 6.22 pounds
