Bell & Gossett 5363-06F-12-003 - Flanged Rolairtrol Separator, RL-6F

Product Description

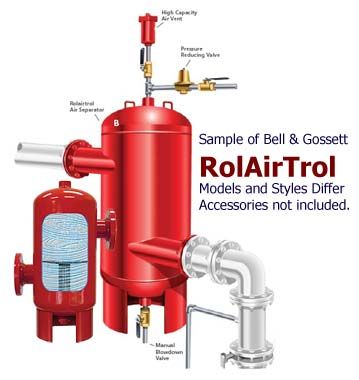

The Bell & Gossett 5363-06F-12-003 is a flanged Rolairtrol air separator designed for efficient air removal in hydronic systems. This model does not include a strainer and is rated for a maximum flow of five hundred eighty gallons per minute and a maximum pressure of one hundred twenty-five psi. It allows for the effective removal of air from the water, which improves heat transfer, enhances energy efficiency, and increases heating comfort. The fluid moves through a stainless steel baffle and brush assembly, where air is trapped and directed to the top-mounted air vent. The treated water continues through the system, ensuring optimal performance.

• Maximum flow rate of five hundred eighty gallons per minute.
• Rated for maximum pressure of one hundred twenty-five psi.
• Max operating temperature of three hundred fifty degrees Fahrenheit.

Product Highlights

This air separator is an essential component for maintaining system efficiency and performance in hydronic applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: RL-6F

Technical Specifications

• MPN: 5363-06F-12-003
• Application: Air separation
• Body Material: Steel
• Connection Size: Six inches
• Separator Connection: Flanged
• Max GPM: 580 GPM
• Max Pressure: 125 psi
• Max Temperature: 350°F
• Weight: 239.00 lbs
