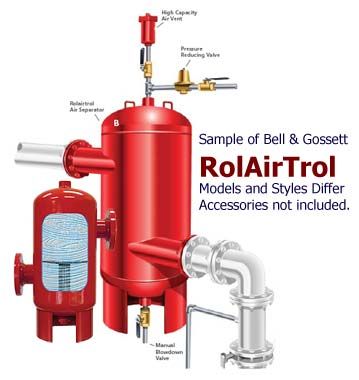

Bell & Gossett 5363-04F-12-003 Flanged Rolairtrol Separator RL-4F

Product Description

The Bell & Gossett 5363-04F-12-003 provides efficient separation of air from hydronic heating systems, enhancing system efficiency and preventing corrosion. Its robust cast iron construction supports a maximum working pressure of 125 psi and it is suitable for both residential and commercial heating applications.

• Efficient air separation to prevent system corrosion and noise.
• Robust 4-inch flanged design facilitates easy installation and maintenance.
• High temperature tolerance up to 350 degrees Fahrenheit.

Product Highlights

This air separator operates at a maximum flow rate of 270 gallons per minute, ensuring efficient handling of heating system demands. The device's design includes a top-mounted air vent that effectively releases trapped air, maintaining the system's integrity and performance.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: RL-4F
• MPN: 5363-04F-12-003

Technical Specifications

• Body Material: Steel
• Connection Size: 4 inches
• Separator Connection: Flanged
• Max GPM: 270 GPM
• Max Pressure: 125 psi
• Max Temp: 350°F
• Weight: 120.00
