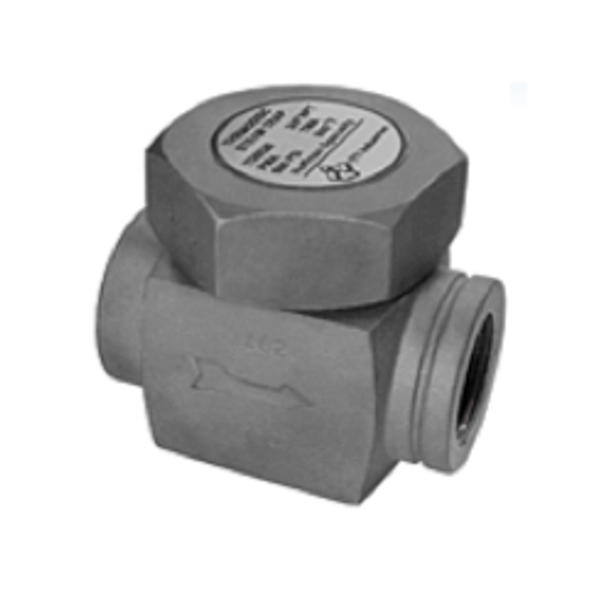

Bell & Gossett 405153 TD6520 Thermodisc Steam Trap 3/4 in

Product Description

The Bell & Gossett 405153 is a TD6520 Thermodisc steam trap designed for high-pressure steam applications. This trap is suitable for use in steam drips and tracer lines with light to moderate loads. It features a nominal size of three-fourths inch and operates up to 600 psi and 800 degrees Fahrenheit. Constructed from 420F stainless steel, this steam trap resists both internal and external corrosion.

• Designed for high-pressure steam applications
• Easy to monitor with an audible discharge cycle
• Wide operational pressure range from 2 to 600 psig

Product Highlights

The series TD Therm-O-Disc is efficient for steam systems and simplifies installation while providing reliable operation.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Series: TD6520
• Nominal Size: 3/4 in
• End Style: NPT
• Length: 2-3/4 in
• Width: 2 in
• Material: 420F Stainless Steel
• Pressure Rating: 600 psi
• Temperature Rating: 800 deg F
