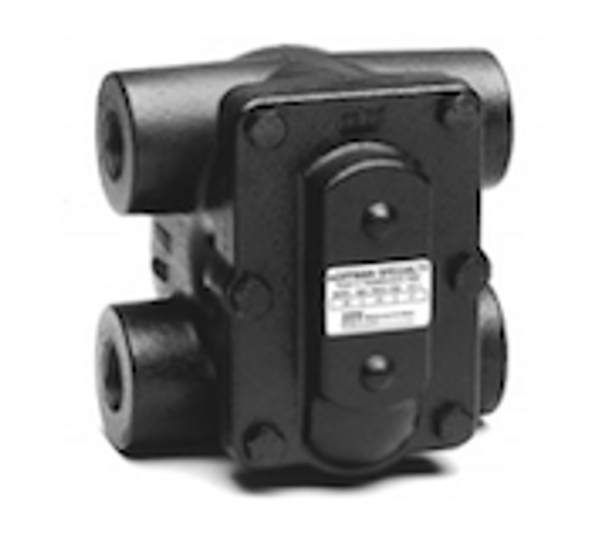

Bell & Gossett 404218 Bear Trap Float and Thermostatic Steam Trap 1 in H Series

Product Description

The Bell & Gossett 404218 is a Bear Trap Float and Thermostatic Steam Trap designed for efficient steam control. This product is part of the H Series and has a nominal size of one inch with a NPT end style. It is made of durable cast iron, suitable for high-performance conditions with a maximum pressure of two hundred fifty psig and a temperature rating of four hundred six degrees Fahrenheit.

• Designed for steam applications
• Constructed from cast iron
• Effective in preventing steam leakage

Product Highlights

This steam trap is equipped with stainless steel internal components to ensure durability and is resistant to water hammer and corrosion. The below condensate level seat design helps prevent steam leakage, while the rugged thermostatic element minimizes air binding.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Nominal Size: 1 inch
• End Style: NPT
• Length: 6.5 inches
• Material: Cast Iron
• Pressure Rating: 250 psig
• Series: H Series
• Temperature Rating: 406 degrees Fahrenheit
• Dimensions: 5.5 inches W x 5.47 inches H
