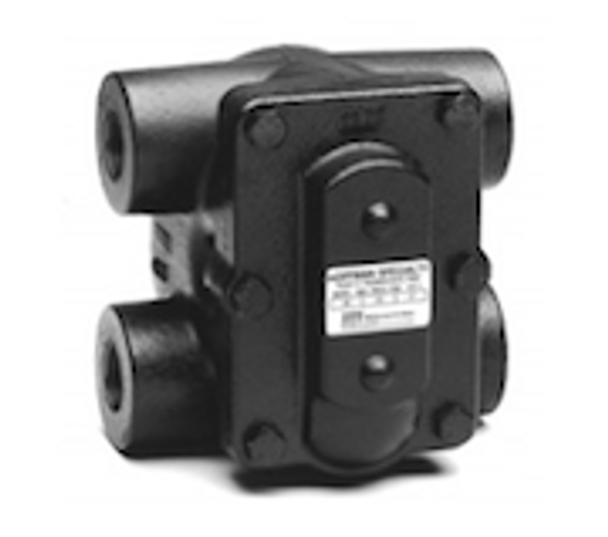

Bell & Gossett 404216 H Series Float and Thermostatic Steam Trap 1 in NPT

Product Description

The Bell & Gossett 404216 is a Hoffman Specialty Bear Trap Float and Thermostatic Steam Trap designed for efficient steam management. This product features a nominal size of one inch and is equipped with NPT end style. Its robust construction from cast iron allows it to withstand a pressure rating of 250 psig and a temperature rating of 406 degrees Fahrenheit. The H Series design ensures reliability in steam systems including the prevention of steam leakage and efficient condensate discharge.

• Cast Iron construction for durability
• Pressure rating of 250 psig
• Temperature rating of 406 degrees Fahrenheit

Product Highlights

Ideal for managing steam in various applications, this steam trap effectively prevents steam loss and enhances system efficiency.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Dimensions: 5-1/2 in W x 5-19/32 in H
• End Style: NPT
• Length: 6-1/2 in
• Material: Cast Iron
• Nominal Size: 1 in
• Pressure Rating: 250 psig
• Series: H Series
• Temperature Rating: 406 degrees Fahrenheit
