Bell & Gossett 404212 Bear Trap Float and Thermostatic Steam Trap 1 in

Product Description

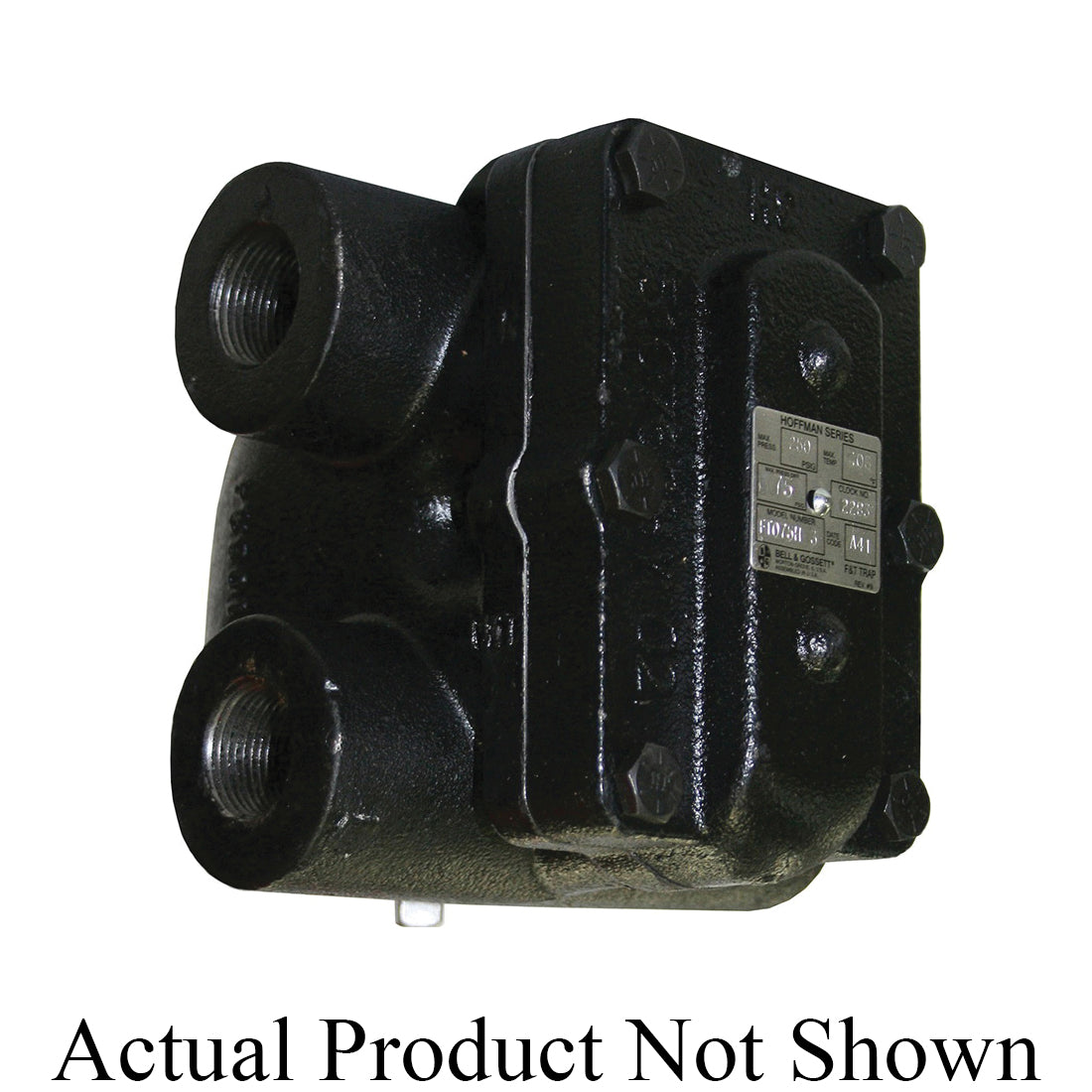

The Bell & Gossett 404212 is a float and thermostatic steam trap from the H Series. This steam trap features a nominal size of one inch and an NPT end style. It operates effectively at a maximum pressure of 250 psig and can withstand temperatures up to 406 degrees Fahrenheit. The trap is constructed from durable cast iron, ensuring reliability in steam applications.

• Float and thermostatic steam trap
• 250 psig pressure rating
• 406 degrees Fahrenheit temperature rating

Product Highlights

This model is designed for high efficiency in steam systems. It features stainless steel internal components that resist water hammer and corrosion. It includes a below condensate level seat design to prevent steam leakage, making it suitable for various steam applications.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Dimensions: 5-1/2 in W x 5-19/32 in H
• End Style: NPT
• Length: 6-1/2 in
• Material: Cast Iron
• Nominal Size: 1 in
• Pressure Rating: 250 psig
• Series: H Series
• Temperature Rating: 406 degrees Fahrenheit
