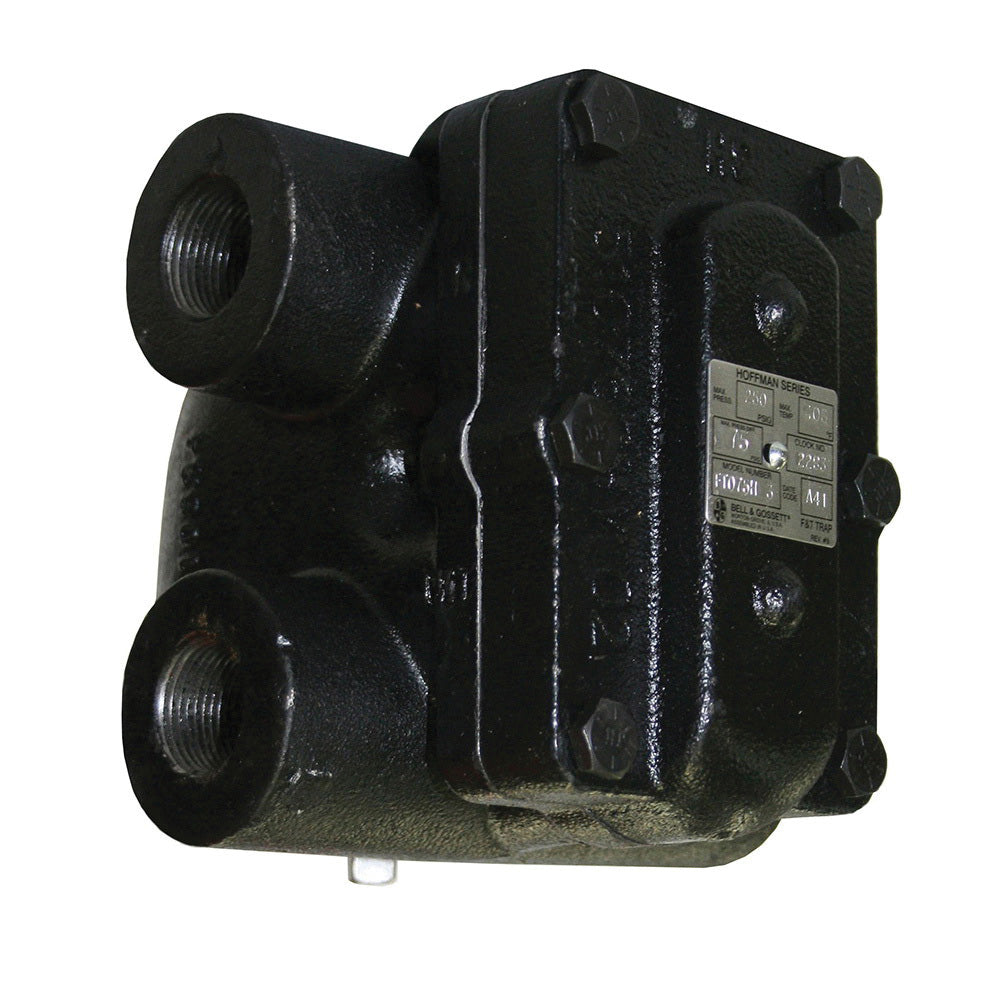

Bell & Gossett 404204 Float and Thermostatic Steam Trap 3/4 in NPT 404204

Product Description

Bell & Gossett 404204 is a Hoffman Specialty Bear Trap Float and Thermostatic Steam Trap. The trap is designed for steam systems requiring reliable performance. It features a nominal size of three-fourth inch and comes with an NPT end style. This unit supports a pressure rating of 250 psig and a temperature rating of 406 degrees F.

• Stainless steel internal components
• Resistant to water hammer and corrosion
• Below condensate level seat design prevents steam leakage

Product Highlights

The Bell & Gossett 404204 is suitable for both residential and commercial steam applications. It is efficient in managing condensate and steam flow, reducing the risk of water hammer. This trap is built to withstand harsh conditions, making it durable and reliable.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• Dimensions: 5-1/2 in W x 5-19/32 in H
• End Style: NPT
• Length: 6-1/2 in
• Material: Cast Iron
• Nominal Size: 3/4 in
• Pressure Rating: 250 psig
• Series: H Series
• Temperature Rating: 406 deg F
