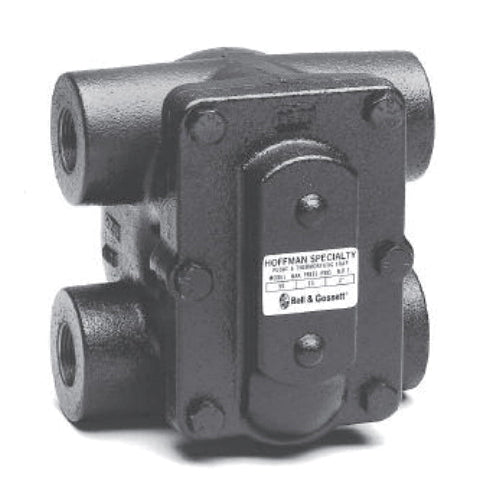

Bell & Gossett 404202 Bear Trap Float and Thermostatic Steam Trap 3/4 in NPT

Product Description

The Bell & Gossett 404202 is a float and thermostatic steam trap designed for steam applications. This model features a nominal size of three-fourths of an inch and uses NPT connections. It operates with a pressure rating of 250 psig and can withstand temperatures up to 406 degrees Fahrenheit. The product is made from durable cast iron, ensuring longevity and reliability in various environments.

• Floats and thermostatic controls for efficient steam management
• Constructed from robust cast iron materials
• Compatible with hot steam up to 406 degrees Fahrenheit

Product Highlights

The Bell & Gossett 404202 steam trap is ideal for various steam systems, offering a reliable solution for condensate removal and steam conservation.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 404202

Technical Specifications

• Series: H Series
• Material: Cast Iron
• End Style: NPT
• Dimensions: 6-1/2 inches L x 5-1/2 inches W x 5-19/32 inches H
• Nominal Size: 3/4 inches
• Pressure Rating: 250 psig
• Temperature Rating: 406 degrees Fahrenheit
