BELL & GOSSETT 1EF072LF e624T Series e60 Pump 208-230/460V 3PH

Product Description

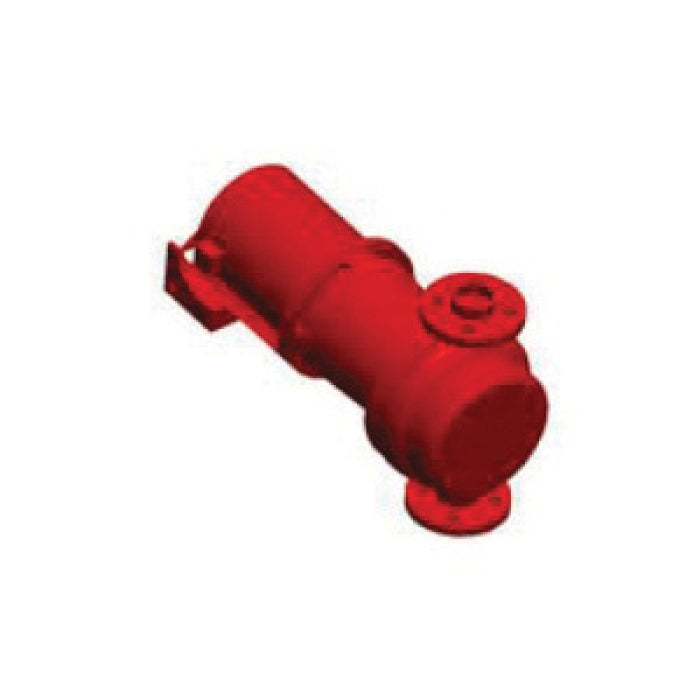

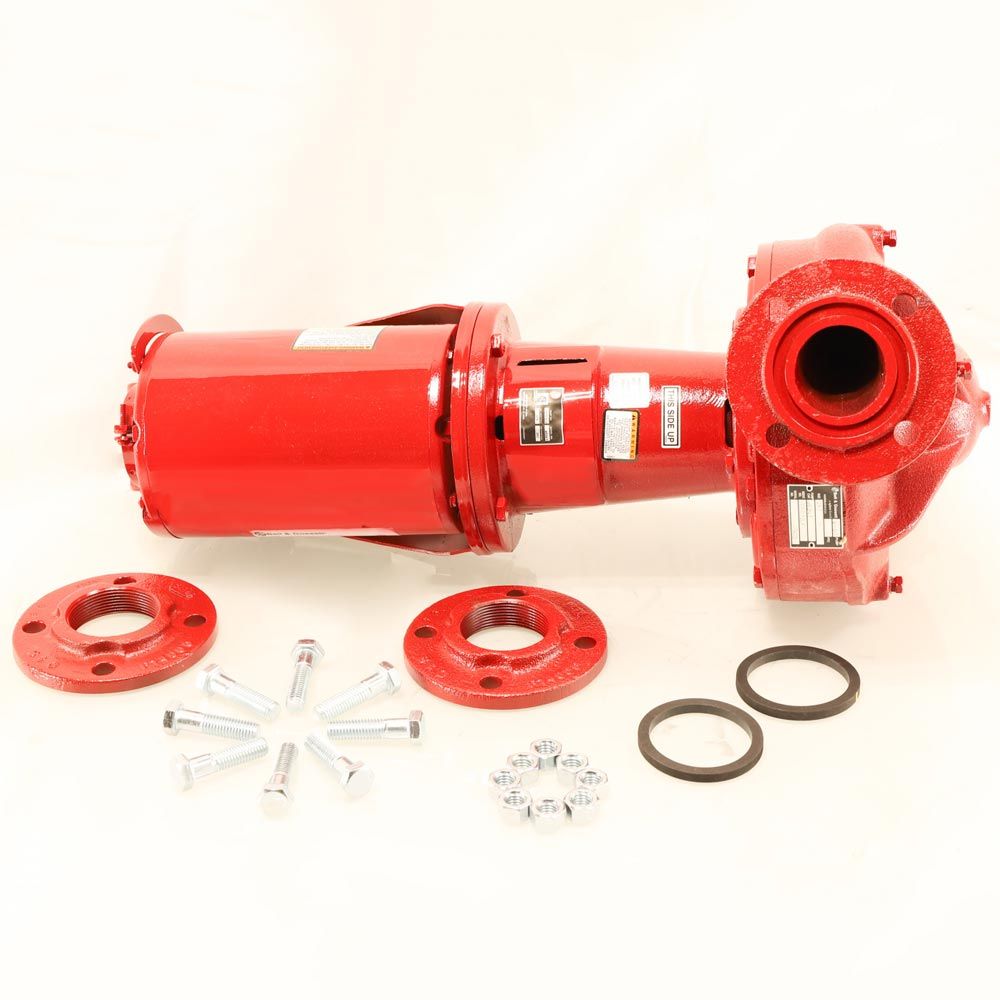

The Bell & Gossett e624T Series e60 Pump, model 1EF072LF, is a robust three-piece cast iron centrifugal in-line pump designed for versatility across hydronic heating and cooling applications. Engineered to provide effective fluid handling, this unit showcases a 2 inch flanged connection and operates on a three-phase, 1HP motor capable of 208-230/460V, achieving a maximum working pressure of 175 psi.

• Optimized hydraulic efficiency for HVAC systems
• Durable construction with cast iron body, designed for long-term reliability
• Equipped with a mechanical seal for consistent performance

Product Highlights

This pump features advanced engineering that includes a unitized self-flushing mechanical seal which minimizes maintenance requirements and ensures operational reliability. With its compact design, the pump accommodates installations with limited space.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• Weight: 95 pounds

Technical Specifications

• Motor Power: 1 Horsepower
• Electrical Requirements: 208-230/460V, 60Hz, 3 Phase
• Operational Pressure: Up to 175 psi
• Maximum Temperature: 250 degrees Fahrenheit
• Connection Type: Flanged
• Impeller: Bronze, Vacuum Cast
